Airmar In-Line Cable Splice Kit for CHIRP Transducers

Easy and waterproof connection

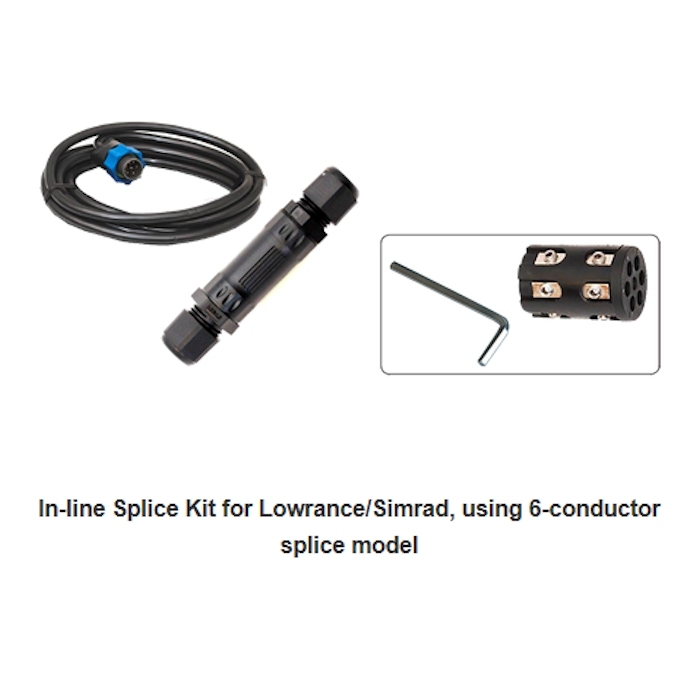

This Airmar In-Line Cable Splice Kit is suitable for Lowrance/Simrad single-band CHIRP transducers. The kit includes the splice and a pigtail with the Lowrance/Simrad blue 7-pin connector. The IP67 waterproof 6-conductor splice features an integrated cable gland which provides strain relief and ensures a watertight connection.

Airmar In-Line Cable Splice Kit Features:

• Kit comes with the splice and a short pigtail with Lowrance/Simrad blue 7-pin connector
• Splice may also be used for connecting 2 pieces of 6-conductor transducer cable
• In-line splice is IP67 rated waterproof
• Integrated cable gland in splice provides strain relief and ensures a watertight connection
• Also includes 1.3mm hex-head wrench

Airmar In-Line Cable Splice Kit Specifications:

• Maximum number of conductors: 6
• Lowrance/Simrad blue 7-pin connector
• Style: In-line splice with Gemeco circular connector
• Cable gland waterproof connector
• Waterproof rating: IP67
• Temperature range: -40deg C ~ 100deg C
• Connector material: Nylon
