Get complete control of your boat

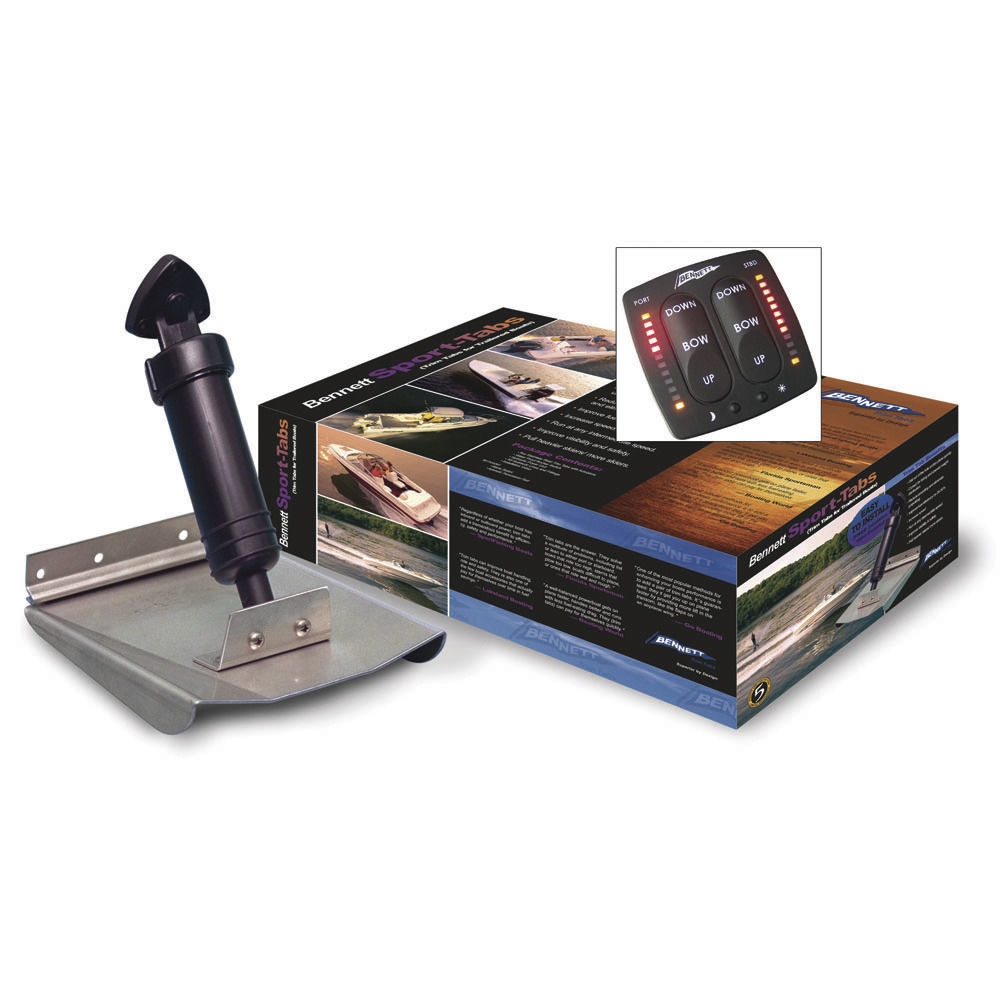

The Bennett Sport Tabs are ideal for trailered boats in the 17' - 23' range. Their unique Batwing design provides 30% more lift than conventional trim tabs and their space-saving design ensures easy installation on virtually any transom. Trim tab kits include two stainless steel trim tabs, two actuators, a hydraulic power unit, all necessary wiring, tubing, hardware and installation video.

Electronic Indicator Control
Control your trim tabs with ease using the Bennett EIC 5000 Electronic Indicator Control Kit. This kit has 3 features combined into one sophisticated control - a rocker switch control, trim tab indicator and the auto tab retractor. It's water resistant, highly accurate and it also features variable intensity LEDs so you can switch with ease, night or day. Plus, it features a relay module near the transom, which simplifies installation by reducing the number of wires to run to the helm. So if you're thinking of installing a Bennett Trim Tab to your boat, then you'll also need the Bennett EIC 5000 Electronic Indicator Control Kit to complete your setup.

Bennett Sport Tabs Features:

• Ideal for trailered boats in the 17' - 23' range

• Unique Batwing design provides 30% more lift than conventional trim tabs

• Space-saving design ensures easy installation on virtually any transom

• Kit includes: 2 x stainless steel trim tabs, 2 x actuators, 1 x hydraulic power unit, all necessary wiring, tubing, hardware and installation video


Electronic Indicator Control

• 3 features combined into one sophisticated control - A rocker switch control, trim tab indicator and the auto tab retractor

• Water resistant

• With variable intensity LEDs for night or day

• Relay module mounted near the transom which simplifies installation

• A1101 Actuator length: 300mm (including mounting plates)

• 12 volts


Bennett Sport Tabs with Electronic Indicator Control Specifications:

Description	Weight	Tab size	Boat Length	UPC

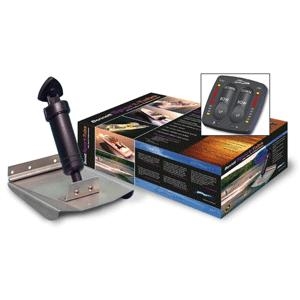

M80 Sport Tabs with Electronic Indicator Control	23	8 x 10in	17 - 20ft	666285145548
M120 Sport Tabs with Electronic Indicator Control	25	10 x 12in	20 - 23ft	666285146644

Bennett Sport Tabs Operation Manual

Electronic Indicator Control Installation Instructions
