Choose control. Enjoy performance

The Zipwake Dynamic Series S 450 Trim Control System incorporates a state-of-the-art family of durable, fast-acting interceptors. The system is fully automatic. It significantly enhances the boat’s performance, fuel economy, comfort and safety when accelerating, turning or running in a seaway.

Benefits:

• Dynamically eliminates uncomfortable and dangerous boat pitch and roll
• Automatically minimises wave resistance and saves fuel
• Built-in quality, simplicity and easy expansion, yet still affordable
• Supports system integration with external devices via NMEA 2000 NETWORK

A Complete Package
The Zipwake Dynamic Trim Control System Kit Box includes all parts needed to install a Dynamic Trim Control System with one pair of fast-acting interceptors. Any base installation can be expanded with up to two extra pairs of Series S interceptors, thus allowing a total of six interceptors without any need for additional connectors or power supply.

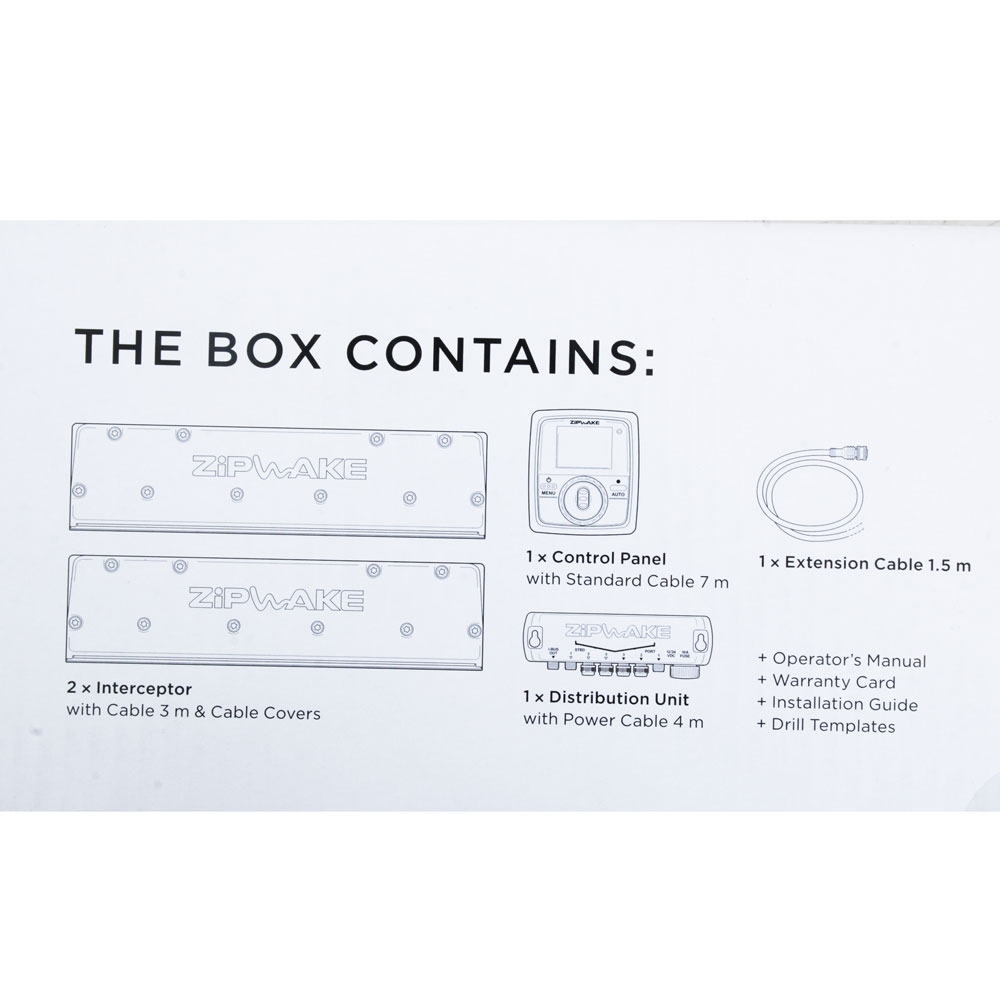

Kit Includes:

• Control Panel with Standard 7m Cable
• 2x 450mm Chine Interceptors with 3m Cable
• Distribution Unit with 4m Power Cable
• Installation and Drill Templates

The Smart Ride Controller
Zipwake's stylish control panel is carefully designed to be user-friendly and intuitive to allow the driver to focus on the right thing – enjoying the boat ride!

The panel's two unique control wheels provide easy, quick and intuitive manual control of running trim, heel or heading. However, the system normally operates in automatic control mode, which is enabled by a single press on the AUTO button. In this mode, the built-in high-frequency GPS, 3D gyro sensors and robust motion controller automatically ensure dynamic elimination of un- comfortable and dangerous boat pitch and roll.

Push the AUTO BUTTON - and GO!
The system provides continuous feedback of boat speed, pitch and roll angle, as well as the interceptors positions, on a 2.4" sunlight-readable colour display.

The Chine Interceptor
Chine interceptors provide a unique means of maximising pitch and roll motion control by utilising the furthest outboard surfaces of the hull bottom for lift generation. As a rule, the lift effect of a chine interceptor matches the lift of a straight interceptor one size larger mounted inboard of the chine, making them the go-to choice when selecting interceptors.

The Distribution Unit
The Distribution Unit supplies the system with power and can accommodate up to six Series S interceptors. The unit is connected to the main control panel. It is robust, waterproof, oil resistant and ignition protected for mounting in an engine room. The power cable is included for easy connection to a battery. The distribution unit has built-in electrical protection, including its own protection fuse.

Zipwake Smart Ride Controller Features:

• Fully automatic
• Dynamic pitch and roll control Steering enhancement
• Built-in GPS and motion sensors
• Unique and intuitive 3D controls
• Sunlight readable color display
• Instant state user feedback
• Auto power on/off via ignition key sense
• Full range of electrical interfaces
• NMEA 2000
• Waterproof
• Auto dimming / night mode
• Upgradable via USB stick
• Up to four control panels in the system
• Surface or flush mount
• Manages installation configurations from 1 up to 6 interceptors

Zipwake Smart Ride Controller Specifications:

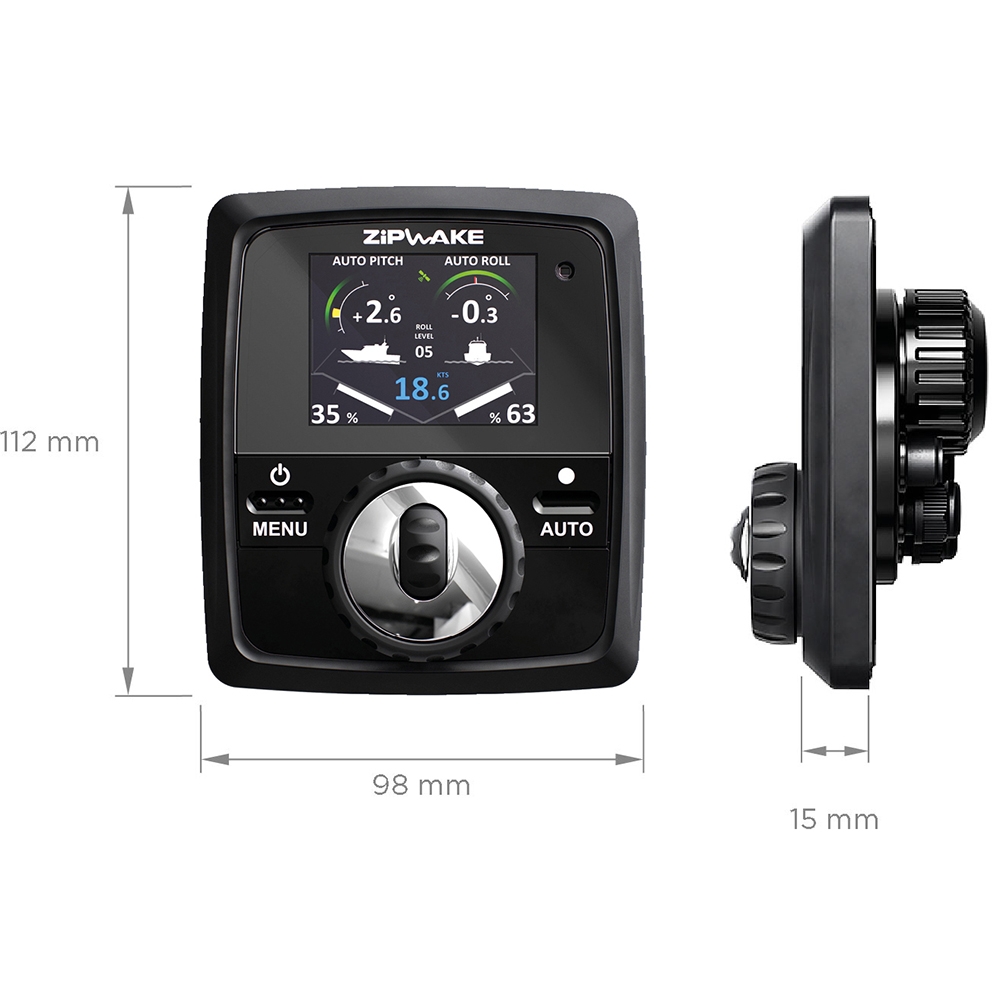

• Model: CP-S
• Display: 2.4" Transflective colour TFT, 320 x 240 pixels, double-sided, anti-reflection coated window
• Internal sensors: 5 Hz GPS, 3D Gyro, 3D Accelerometer, Ambient light
• Supply Voltage: 12 - 32 V DC
• Power Consumption: 10 W max
• Operating Temperature: -20° to +85°C (-4° to +185°F)
• Storage Temperature: -40° to +90°C (-40° to +194°F)
• Waterproof Rating: IP67 / IP64 (front / back)
• Compass Safe distance: 0.5 m (1.7 ft)
• Compliance: CE, FCC
• Weight: 0.22 kg (0.49 lbs)
• Mounting: Flush or surface
• Interfaces: I-BUS IN (CAN bus), I-BUS OUT (CAN bus), NMEA 2000, External GPS (NMEA 0183 / RS232 auto baud-rate sensing), Key Sense, USB Device Port (Type A), USB Host Port (Type B)

Zipwake Chine Interceptor Features:

• True outboard mount
• Modular design
• Fast actuation
• Submersible servo units
• Brushless 12-24V DC servo
• High-precision positioning
• Calibration free
• Durable and accessible
• Integrated mounting plate
• Thru-hull fitting options
• Above waterline
• Concealed behind interceptor
• No corrosive materials
• Model: Chine

Zipwake Chine Interceptor Specifications:

• Model: IT450-S CHINE
• Length: 450mm (18in)
• Weight: 2.8kg (6.2lbs)
• Max. Boat Speed: 60 knots
• Blade Stroke: 30 mm (1.2 in)
• Blade Rate: 20 mm/s (0.8 in/s)
• Thru-Hull Cable Fitting: Concealed or above waterline
• Servo actuator: SU-S
• Cable Length: 3 m (10 ft)
• Cable Material: PUR
• Connector: M12 5-pin circular
• Connector Diameter: 14.5 mm (0.57 in)
• Supply Voltage: 12 - 32 V DC
• Power Consumption: 25 W max
• Operating Temperature: 0° to +40°C (+32° to +104°F)
• Storage Temperature: -40° to +90°C (-40° to +194°F)
• Waterproof Rating: IP68 5 m (16 ft)
• Compliance: CE, FCC

Zipwake Distribution Unit Specifications:

• Model: DU-S
• Supply Voltage: 12 - 32 V DC
• Power Consumption: 0.1 W max
• Protection Fuse: 10 A ATO
• Power Cable Length: 4 m (13 ft), Diameter 9 mm (0.35 in), 12 AWG
• Operating Temperature: -20° to +85°C (-4° to +185°F)
• Storage Temperature: -40° to +90°C (-40° to +194°F)
• Waterproof Rating: IP67 with cables and/or protective caps mounted
• Oil resistance: Common engine fluids
• Compliance: CE, FCC, SAEJ1171 Ignition Protected
• Weight: 1.0 kg (2.2 lbs) including the power cable
