Way better than trim tabs

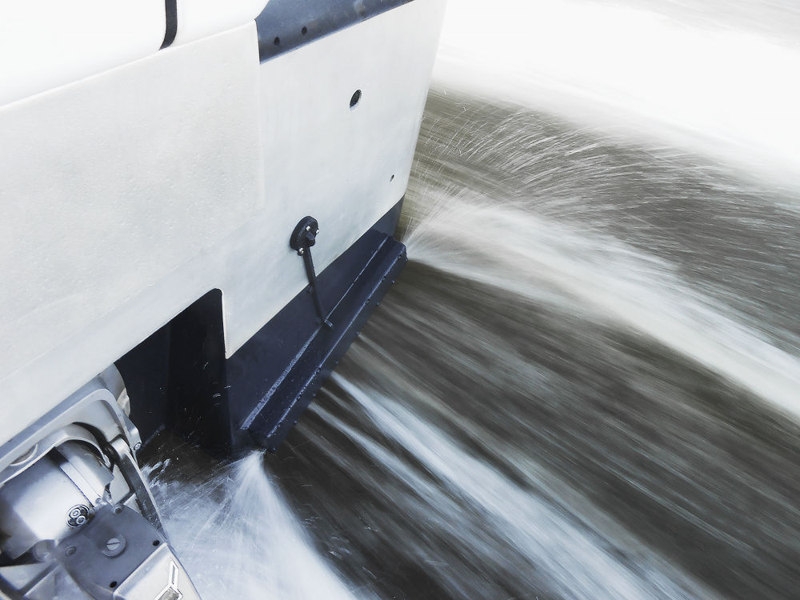

Great for rough seas, or when people are moving around on the boat - the Zipwake KB300-S Automatic Trim Tab Control automatically keeps your boat level when travelling. With its revolutionary Interceptors, large plates are now a thing of the past. The unique sunlight-readable 3D control display provides you with unmatched, user-friendly, intuitive and precise control of running trim, heel or heading. Best of all, this system is fully automatic and significantly enhances your boat's performance, fuel economy, comfort and safety whatever the conditions. Just push the AUTO button - and go!

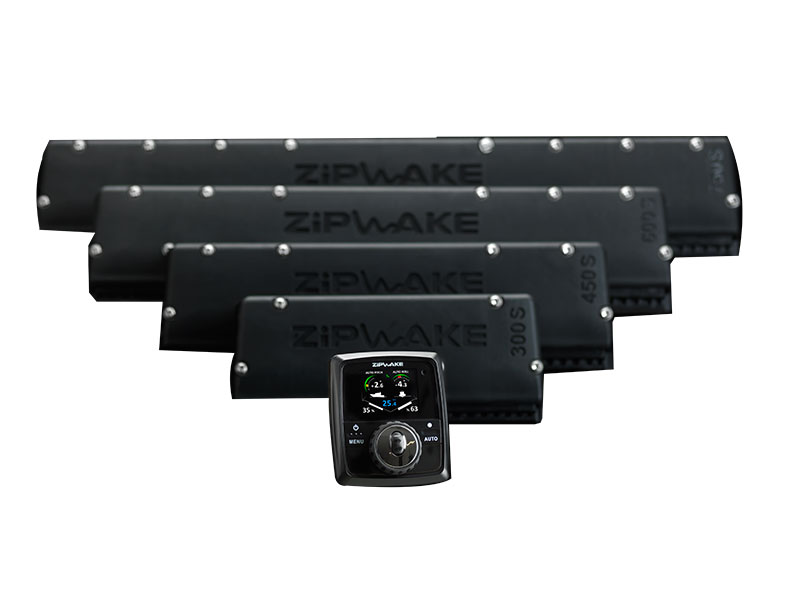

What's in the Kit:
- 1 x Control Panel S with Standard Cable 7 M (Model: CP-S / Part: 2011238)
- 1 x Distribution Unit S with Power Cable 4 M (Model: DU-S / Part: 2011239)
- 2 x Interceptor 300 S with Cable 3 M & Cable Covers (Model: IT300-S / Part: 2011232)
- Operator’s Manual, Warranty Card, Installation Guide, Drill Templates, Operator’s Quick Guide, Startup Checklist
- Mounting Screws
Zipwake CP-S Control Panel Specifications:
- Model: CP-S
- Display: 2.4" Transflective colour TFT, 320 x 240 pixels, double-sided, anti-reflection coated window
- Internal sensors: 5 Hz GPS, 3D Gyro, 3D Accelerometer, Ambient light
- Supply Voltage: 12 - 32 V DC
- Power Consumption: 10 W max
- Operating Temperature: -20 to +85 °C (-4 to +185°F)
- Storage Temperature: -40 to +90°C (-40 to +194°F)
- Waterproof Rating: IP67 / IP64 (front / back)
- Compass Safe distance: 0.5 m (1.7 ft)
- Compliance: CE, FCC
- Weight: 0.22 kg (0.49 lbs)
- Mounting: Flush or surface
Zipwake DU-S Distribution Unit Specifications:
- Model: DU-S
- Supply Voltage: 12 - 32 V DC
- Power Consumption: 0.1 W max
- Protection Fuse: 10 A ATO
- Power Cable Length: 4 m (13 ft), Diameter 9 mm (0.35 in), 12 AWG
- Operating Temperature: -20 to +85 °C (-4 to +185°F)
- Storage Temperature: -40 to +90 °C (-40 to +194°F)
- Waterproof Rating: IP67 with cables and/or protective caps mounted
- Oil resistance: Common engine fluids
- Compliance: CE, FCC, SAEJ1171 Ignition Protected
- Weight: 1.0 kg (2.2 lbs) including the power cable

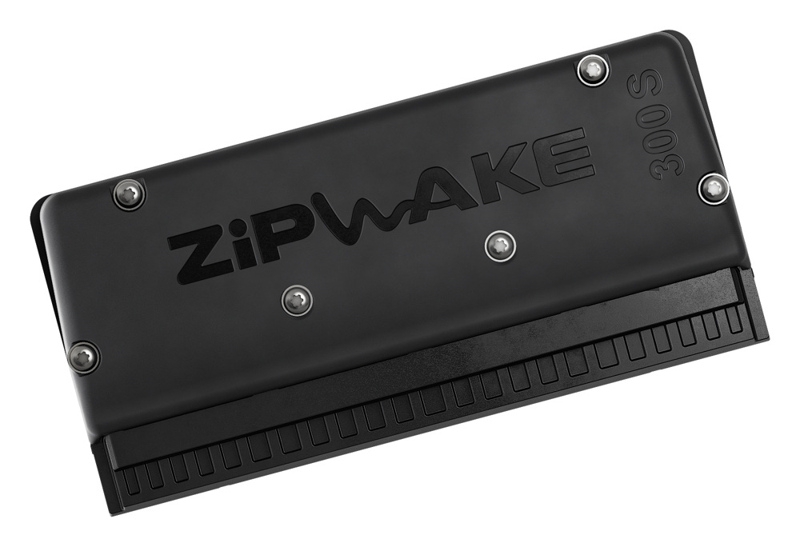

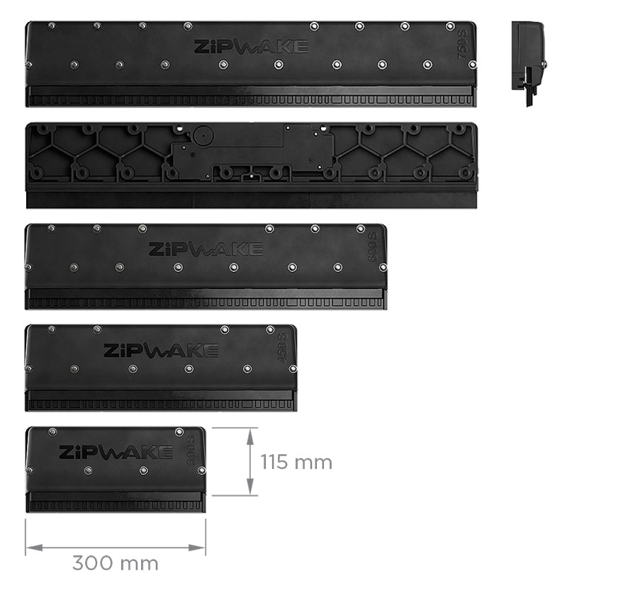

Zipwake IT300-S Interceptors Specifications:
- Model: IT300-S
- Length: 300mm (12in)
- Weight: 2.1kg (4.6lbs)
- Max. Boat Speed: 60 knots
- Stroke: 30 mm (1.2 in)
- Blade Rate: 20 mm/s (0.8 in/s)
- Thru-Hull Cable Fitting: Concealed or above waterline
- Servo actuator: SU-S
- Cable Length: 3m (10 ft)
- Cable Material: PUR
- Connector: M12 5-pin circular
- Connector Diameter: 14.5 mm (0.57 in)
- Supply Voltage: 12 - 32 V DC
- Power Consumption: 25 W max
- Operating Temperature: 0° to +40°C (+32° to +104°F)
- Storage Temperature: -40° to +90°C (-40° to +194°F)
- Waterproof Rating: IP68 5 m (16 ft)
- Compliance: CE, FCC
- Connector Diameter: 14.5 mm (0.57 in)

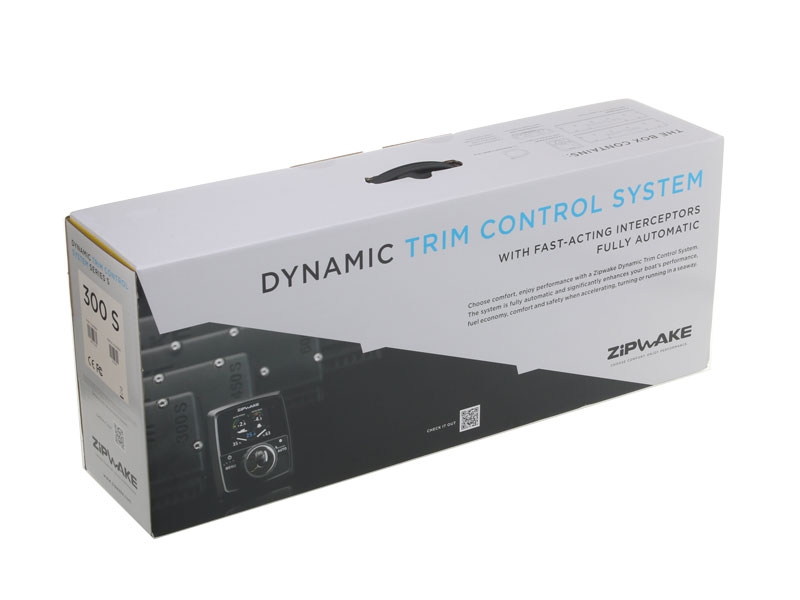

Zipwake KB300-S System Kit Specifications:
- Model: KB300-S (Part: 2011145)
- Description: Kit Box 300 S
- Interceptor blade length: 300mm
- Cable length: 1.5 m
- Width: 680mm (26.8in)
- Depth: 156mm (6.1in)
- Height: 274mm (10.8in)
- Weight: 7.0kg (15.3lb)
