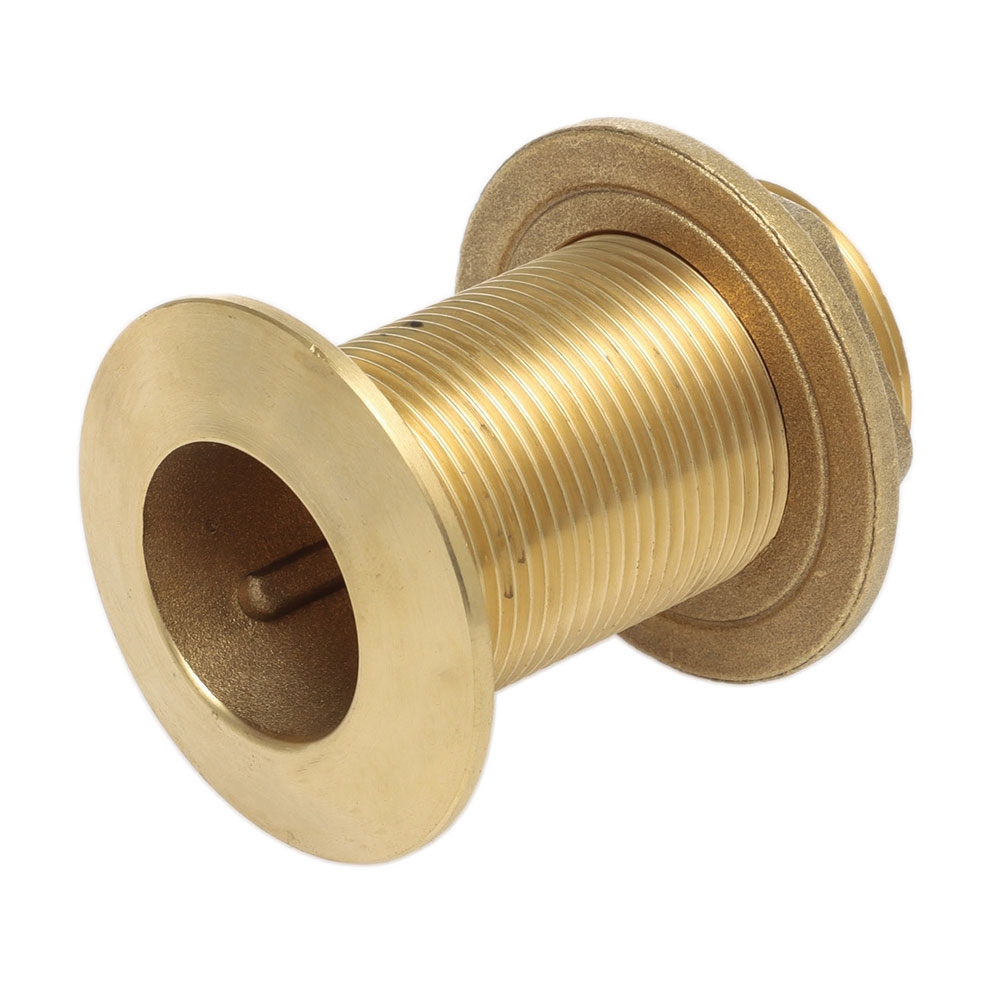

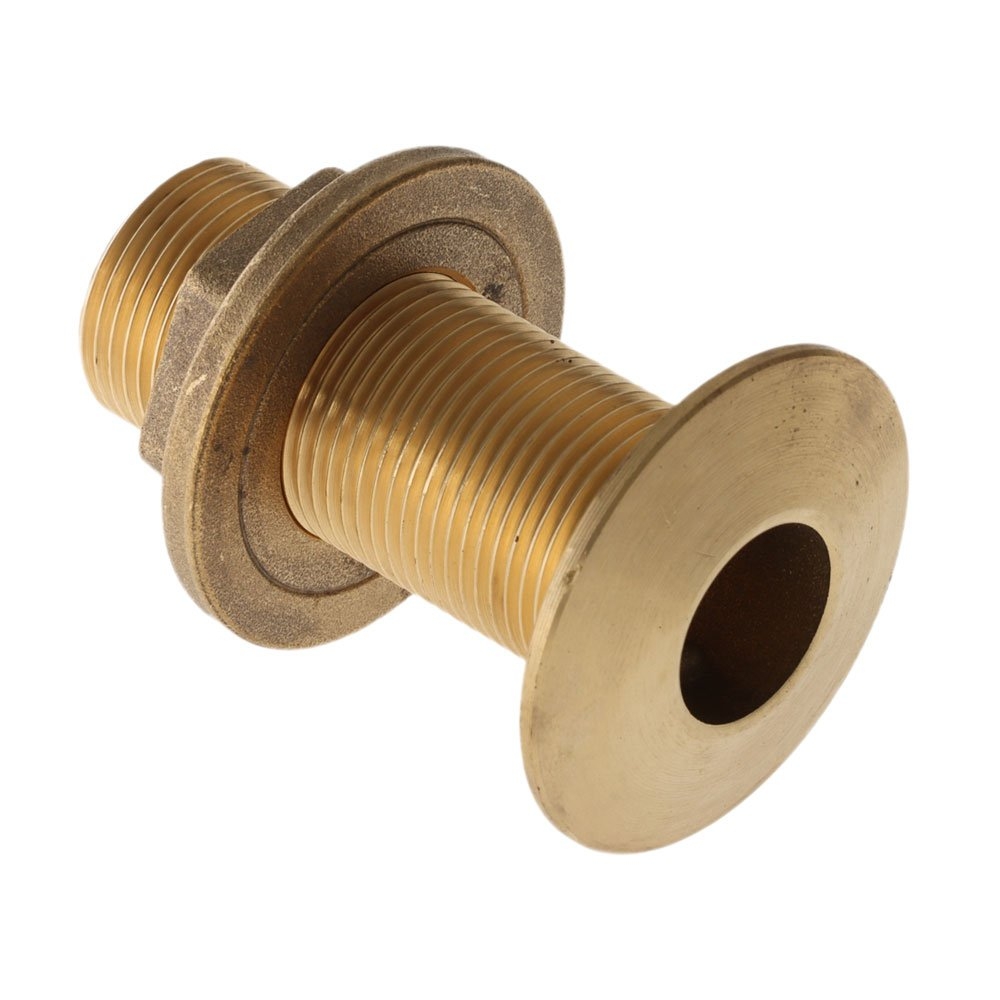

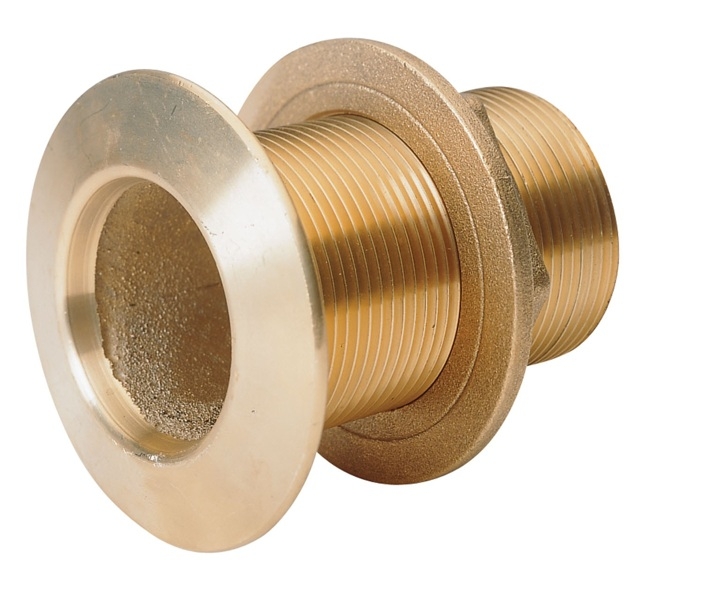

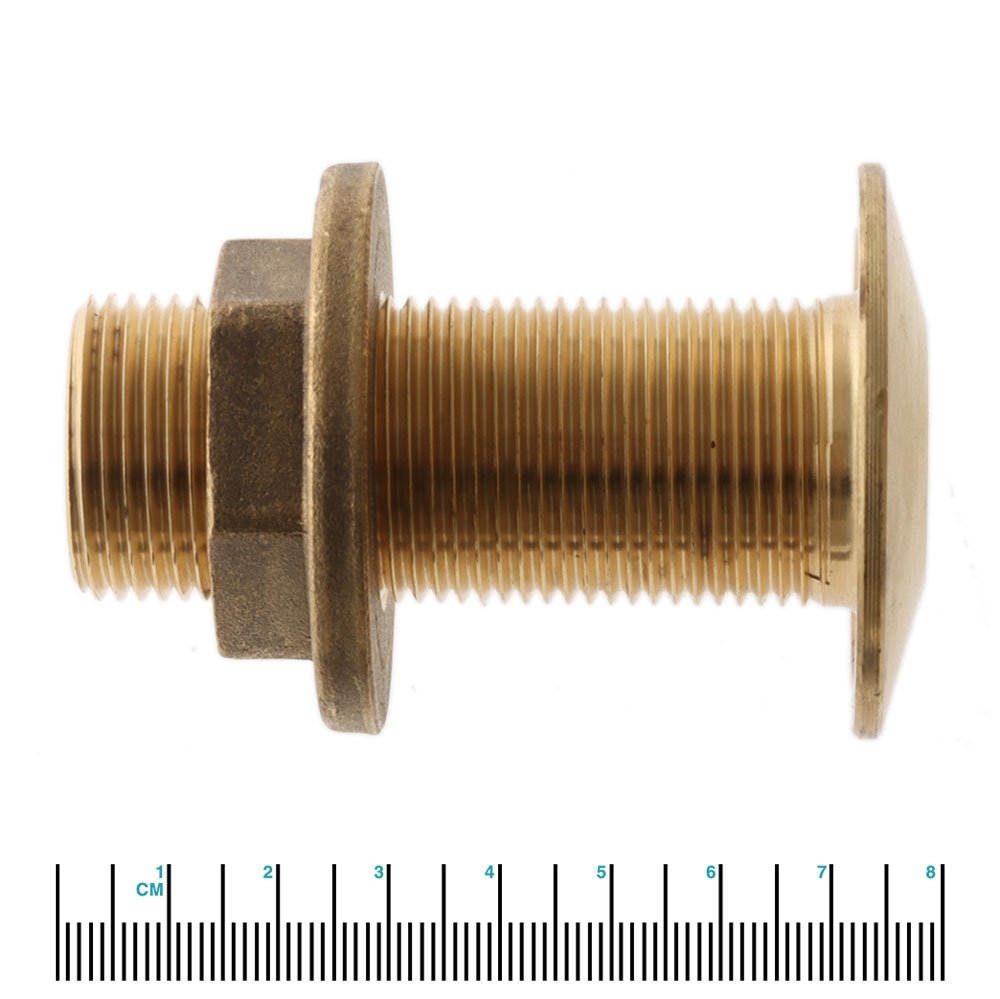

V-Quipment Thru-Hull Brass Skin Fitting - Chamfered
V-Quipment Thru-Hull Brass Skin Fitting - Chamfered
Deliver to:
Auckland 1026,
NZ
Estimated:
$5.99
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information

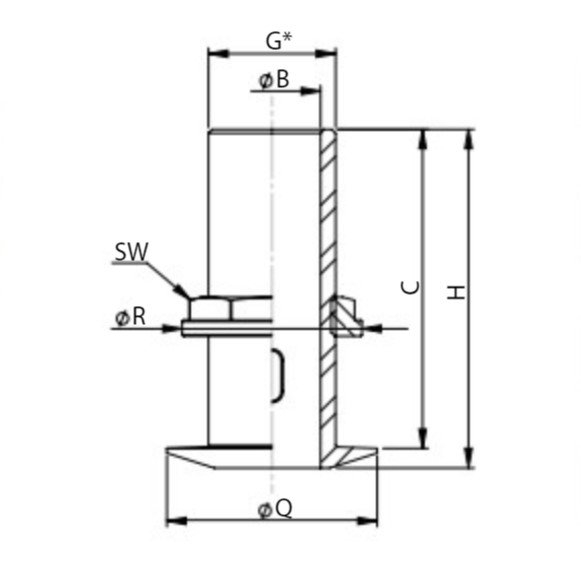

| Type | Thread (G)* | B (dia.) | H | C | Q (dia.) | R (dia.) | SW | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| DOORB3/8 | 3/8" | 11 | 58 | 53 | 34 | 36 | 22 | 0,20 |
| DOORB1/2 | ½" | 15 | 64 | 58 | 40 | 39 | 25 | 0,25 |
| DOORB3/4 | ¾" | 19 | 72 | 66 | 49 | 49 | 32 | 0,25 |
| DOORB1 | 1" | 25 | 77 | 70 | 56 | 56 | 40 | 0,35 |
| DOORB11/4 | 1¼" | 34 | 83 | 76 | 65 | 66 | 50 | 0,45 |
| DOORB11/2 | 1½" | 39 | 84 | 78 | 72 | 72 | 56 | 0,60 |
| DOORB2 | 2" | 50 | 102 | 94 | 84 | 84 | 68 | 0,90 |
| DOORB21/2 | 2½" | 65 | 132 | 123 | 110 | 111 | 91 | 1,70 |
| DOORB3 | 3" | 76 | 150 | 140 | 127 | 124 | 105 | 2,50 |
*According to ISO 228/1-G..B
Note: For continuous immersion in salt water, we advise against the use of brass fittings.
