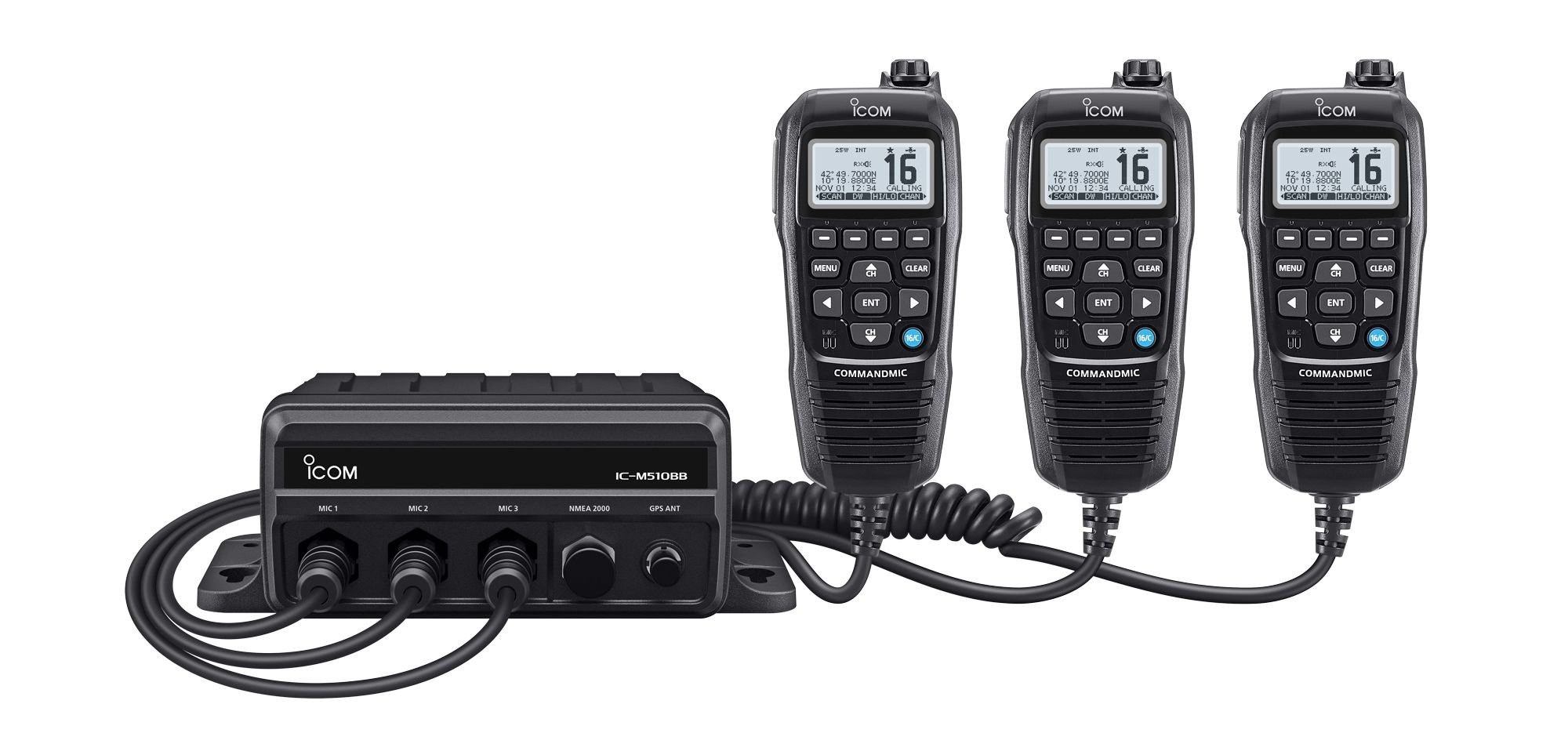

Icom IC-M510BB Fixed-Mount Marine VHF Transceiver with DSC

Control all communications on the water

The Icom IC-M510BB Fixed-Mount Marine VHF Transceiver provides VHF communications for vessels, ideal for limited helm spaces. This fixed-mount marine transceiver consists of a multi-piece CommandMic and a black box RF unit. The supplied CommandMic controls the radio for essential communications on the water including DSC. The IC-M510BB also allows installation of the RF unit out-of-sight and away (up to 60ft/18m) from the CommandMic.

Install Up to Three Stations
Up to three CommandMic stations are available with the IC-M510BB providing access to the VHF radio and Intercom functions. When using the Intercom function, you can select either one-to-all or one-to-one communication.

NMEA 2000 and NMEA 0183-HS
NMEA 2000 network provides plug-and-play data communication to inter-connect with other marine equipment such as an MFD (Multi-Function Display). The radio can send GNSS (GPS) position, AIS, DSC call, and radio channel to other equipment.

DSC Remote Control Interface
The IC-M510BB has a dedicated DSC Remote Control (EN 300 338-8 Compatible) terminal, allowing connection to a PC console software or external device. You will be able to centralize emergency communications control.

Active Noise Canceling
The Active Noise Cancelling digitally removes background noise from both transmit and receive audio and provides clear communication in a noisy maritime environment.

Built-in Class D DSC
With just a press of the “DISTRESS” button, the built-in DSC (Digital Selective Calling) system can digitally transmit distress information to the Coast Guard and/or other vessels. The DSC watch function continuously monitors the DSC channel (Ch. 70) for added safety and security.

Loud 1-Way RX Hailer
A built-in 15 W* amplifier increases the audio output to an external hailer speaker. The 1-way RX hailer function enables you to keep watch of the radio traffic on the deck or tower through the hailer speaker. You can also sound foghorn patterns from the hailer speaker.

Icom IC-M510BB Fixed-Mount Marine VHF Transceiver Features:

• Excellent for boats with limited helm space
• Can be installed out of place up to 60ft away from CommandMic
• Includes CommandMic and black box RF unit
• IPX7 waterproof, 1 m depth water for 30 minutes
• AquaQuake function
• External speaker connection from the CommandMic cable
• Anchor Watch function
• Class D DSC
• NMEA 2000 and NMEA 0183-HS
• Loud one-way RX hailer
• Active noise cancelling

Icom IC-M510BB Fixed-Mount Marine VHF Transceiver Specifications:

General

• Version: EUR
• Frequency range:

  • TX: 156.025~161.425 MHz
  • RX: 156.050~162.000 MHz | (156.500 ~ 162.025 MHz for China)
  • DSC: 156.525 MHz
  • AIS1, 2: 161.975, 162.025 MHz
• Usable channels: INT, USA, ATIS channels
• Type of emission: 16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS)
• Power supply requirement: 12.0 V DC (10.8~15.6 V DC)
• Current drain (at 13.8 V DC):

  • TX 25 W output: 5.5 A Max.
  • RX Max. Audio: 1.5 A (One CommandMic) | 4.5 A (Three CommandMic & RX hailer)
• Operating temperature range: –20°C ~ +60°C; –4°F ~ +140°F
• Antenna impedance: 50 Ω
• Dimensions (W x H x D, Projections are not included):

  • RF unit: 216 x 79 x 113 mm
  • CommandMic: 67.5 x 144.5 x 37 mm
• Weight: 890g (RF unit), 400g (CommandMic)
• Ingress protection standard: IPX7 waterproof (Except for the DC power connector, NMEA In/Out leads and AF Out leads)

Transmitter

• Output power: 25 W, 1W
• Max. frequency deviation: ±5 kHz
• Frequency tolerance: ±0.5 kHz
• Spurious emissions: Less than 0.25 μW
• Residual modulation: More than 40 dB
• Adjacent channel power: More than 70 dB

Receiver

• Sensitivity:

  • FM: Less than -2 dBμ emf (at 20 dB SINAD)
  • DSC (1% BER): -7 dBμ emf typical
• Adjacent channel selectivity:

  • FM: More than 70 dB
  • DSC (1% BER): More than 73 dBμ emf
• Spurious response:

  • FM: More than 70 dB
  • DSC (1% BER): More than 73 dBμ emf
• Intermodulation:

  • FM: More than 68 dB
  • DSC (1% BER): More than 68 dBμ emf
• Hum and noise: More than 40 dB
• Audio output power:

  • CommandMic: More than 2 W (with 4 Ω load, at 10% distortion)
  • Rx hailer: More than 13 W (with 4 Ω load)
