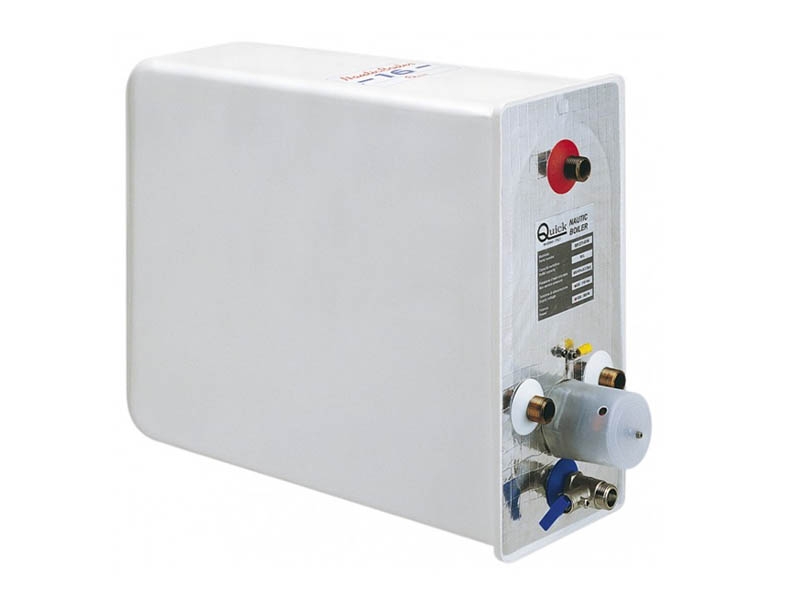

Quick BX 16L Rectangular Water Heater

Stainless steel water heater

Suitable for engine heat exchange, the Quick BX 16L Rectangular Water Heater produces water from an incoloy electric heating element that is fitted with an adjustable safety bi-thermostat. This unit is equipped with a heat exchanger composed of AISI 316L stainless steel with a capacity that is notably higher than that achieved from other manufacturers. The interior of the tank is made of 1.5 mm gauge AISI 316 stainless steel welded with Argon shielding gas which enables it to be highly resistant to corrosive agents. The exterior of the tank is composed of a sleek looking 304 AISI stainless steel. The unit has a thermal insulation composed of high density polyurethane foam which is injected between the cover and tank thus providing excellent heat retention properties. Thanks to the rectangular design this unit is perfect for installation in small spaces. This unit comes equipped with the Water heater, Mounting Brackets and 4 brass fittings.

Quick BX 16L Rectangular Water Heater Features:

• Comes with 1200W, 220V element

• BXS water heater exchange range is distinguished by the square shape design, making for particularly easy installation

• Equipped with the Water heater, Mounting Brackets and 4 brass fittings.

• Capacity: 16L


Quick BX 16L Rectangular Water Heater Specifications:

• Model: BX 16

• Tank capacity - L: 16 L

• Tank material: Stainless steel

• Thermal insulating: Polyurethane foam

• External cladding material: Thermoformed material

• Tank pressure (running test): 800 kPa (1)

• Maximum working pressure: 600 kPa (1)

• Electric element voltage rating (2) (3): 220 Vac plus or minus 10%

• Electric element power (2) (3): 500 W [Mod. 05] - 600W [Mod. 06] (5) - 1200 W [Mod. 12]

• Outputs diameter: 1/2"

• Weight with exchanger: 10.5 Kg

• Weight without exchanger: 9.5 Kg

• Dimensions: 520mm x 350mm x 180mm
