Quick Nautic Boiler BX Water Heater 1200w

Details

Details

Beat the cold

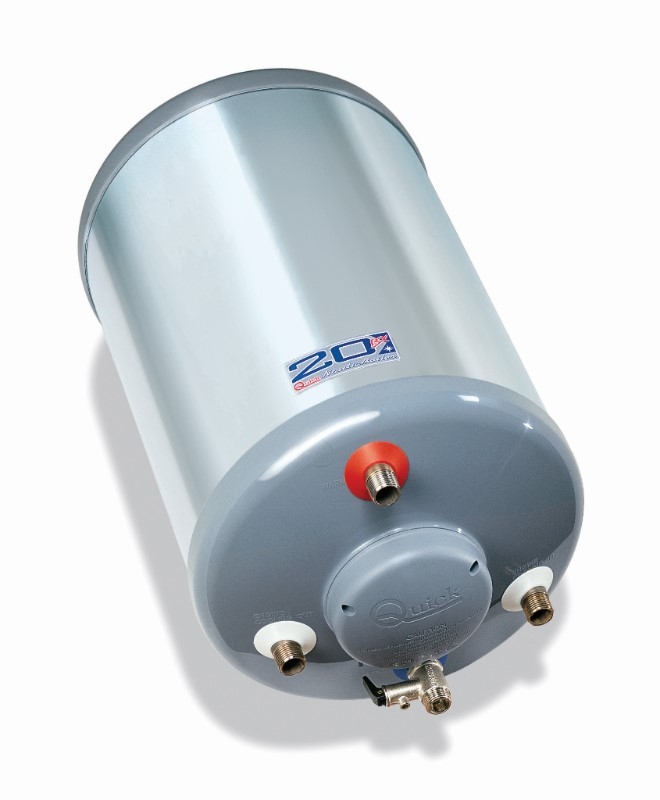

A quick and easy way to deal with cold water when you're out on your boat, the Quick Nautic Boiler BX Water Heater is easy to install and up to the job of heating water especially in the unforgiving marine environment. Quick water heaters are manufactured to the highest standards and available in a range of sizes to suit all uses; from trailer craft to large launches to your mobile home.

The Nautic BX has a 304 stainless steel case with a 316 stainless steel cylinder for a long and trouble-free life. The unit produces hot water from the electric element, which is fitted with an adjustable safety bi-thermostat. Stainless steel heat exchangers built with a large surface area for fast heating. The thermal insulation is high density polyurethane foam injected between the cover and tank giving excellent heat retention properties. Plus its tank mounting brackets allow for wall or floor mount installation.

Quick Nautic Boiler BX Water Heater Features:

• Produces hot water from the electric element, which is fitted with an adjustable safety bi-thermostat (regulates the element when to start heating the water and when to stop via temp setting)
• 40 PSI pressure relief valve
• Heat exchanger with wide exchange surface
• High quality materials
• Relief / non-return valve that allows discharging of the water heater in case of disuse
• High density polyurethane foam thermal insulation for excellent heat retention properties
• 304 Aisi stainless steel casing
• 316 Aisi stainless steel cylinder
• Easy wall or floor mount installation with 316 stainless steel tank brackets
• Maximum working pressure: 600 kPa
• All connections are 1/2"
• Available sizes: 20 - 80L
• Includes Stainless strap style bracket

Quick Nautic Boiler BX Water Heater Specifications:

• Tank material: Stainless steel 316 Aisi
• Thermal insulating: High thickness polyurethane foam
• External cladding material: Stainless steel 304 Aisi
• Tank pressure (running test): 800 kPa (1 Bar = 100 kPa)
• Maximum working pressure: 600 kPa (1 Bar = 100 kPa)
• Electric element voltage rating: 220 Vac ± 10%
• Electric element power: 1200 W
• Outputs diameter: 1/2"
• Current/load draw: 240 Volt AC 1200w

Quick Nautic Boiler BX Water Heater Dimensions:

Model	Tank Capacity	Diameter	Length	Weight	Watt
BX 15 12S	15 L	300 mm	405 mm	9.5 kg	1200 w
BX 20 12S	20 L	300 mm	500 mm	10.9 kg	1200 w
BX 25 12S	25L	300 mm	605 mm	12.3 kg	1200 w
BX 30 12S	30 L	360 mm	495 mm	12.6 kg	1200 w
BX 40 12S	40 L	360 mm	620 mm	14.7 kg	1200 w
BX 50 12S	50 L	400 mm	610 mm	17.0 kg	1200 w
BX 60 12S	60 L	400 mm	715 mm	19.0 kg	1200 w
BX 80 12S	80 L	400 mm	905 mm	22.7 kg	1200 w

Note: Thermostatic mixing valve kit sold separately.
