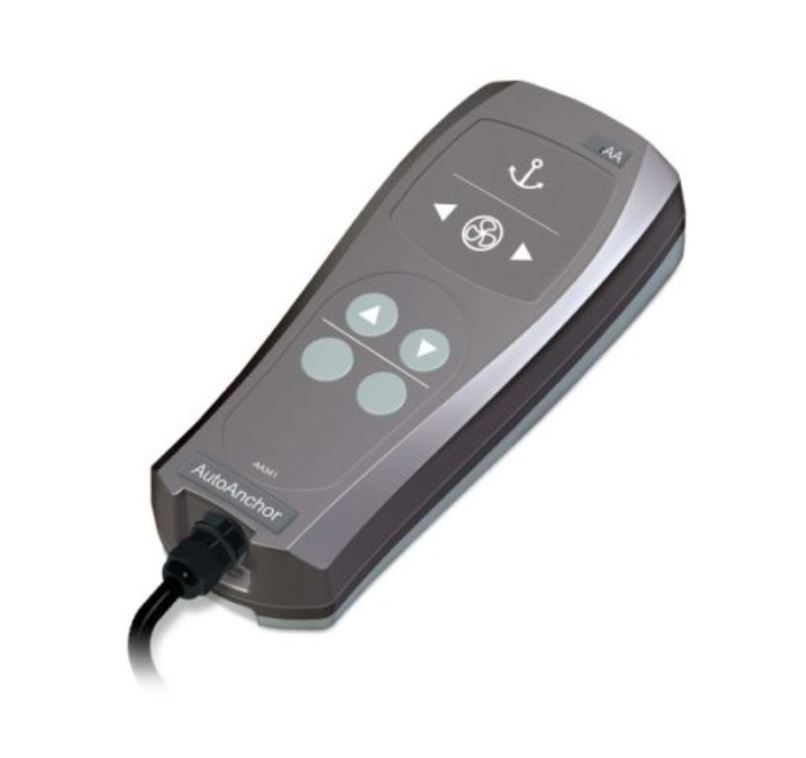

AutoAnchor 341 4 Output Handheld Remote Control 4m Spiral Cable

Durable and reliable remote control

• Electrical protection against back-emf

• Ergonomic shape with rubber over-moulding for shock protection and grip

• Stowage cradle

• Operation in parallel with all AutoAnchor products – toggle switches, foot switches or other control equipment

• Connect to DC, AC and Hydraulic systems

• Rugged cable connectors with:
  Moulded plug and socket rated to IP67
  Gold plated contacts on plug and socket to reduce corrosion
  Gold plated 3 pin panel plug
  Socket sealing cap


• Part number: 9210 (model AA341)

• 4m spiral cable

• 4 outputs
  2 Buttons Up/Down (Windlass)
  2 Button Blank (Other Equipment)
  Supplied with decals for button customisation

• Maximum operating voltage: 30V DC or 25V AC (RMS)

• Maximum output current: 3A

• Temperature range: 23°F to 140°F (-5°C to 60°C)

• Enclosure dimensions(HxWxD): 150.46 x 64.37 x 47.42mm (5.92″ x 2.53″ x 1.87″)

• IP rating: IP67
