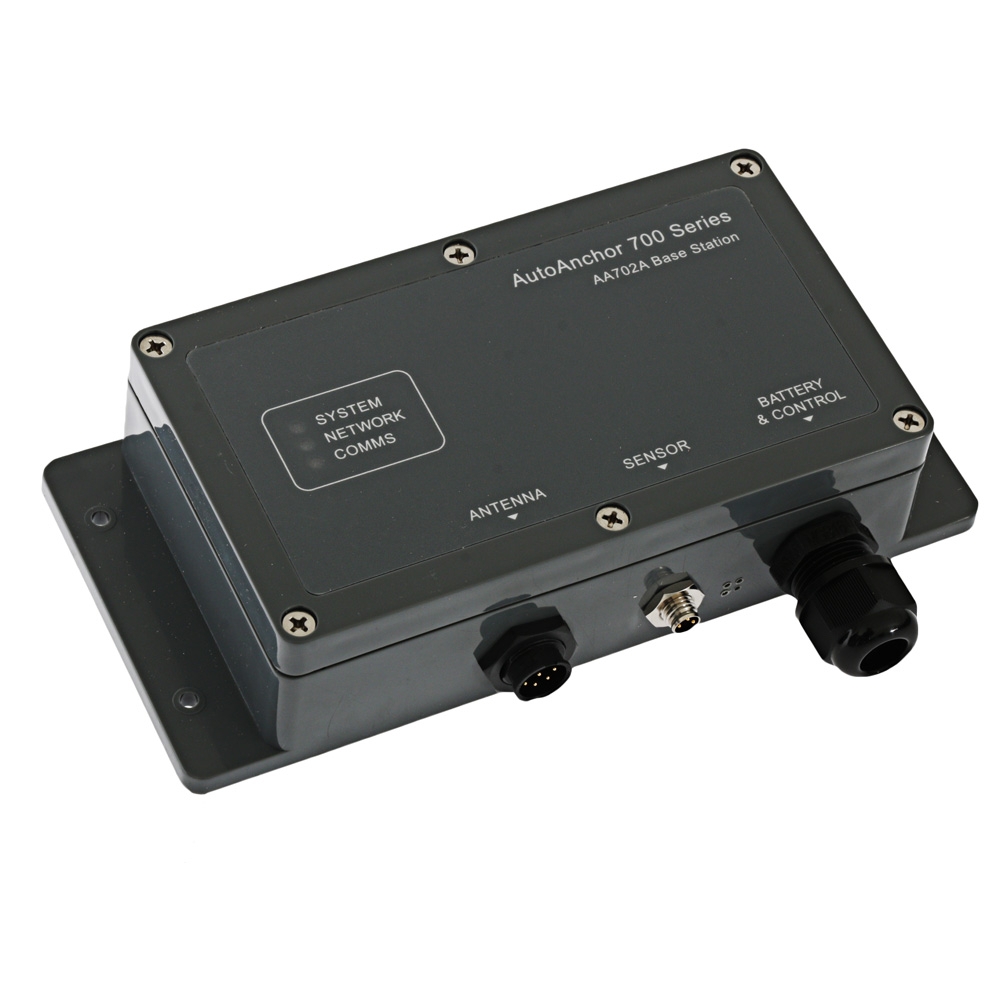

AutoAnchor AA702 Windlass Anchor Control Kit - Base Station Only
AutoAnchor AA702 Windlass Anchor Control Kit - Base Station Only
Deliver to:
Auckland 1026,
NZ
Estimated:
$5.99
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
Full windlass control and chain counting
Product Condition Note: Base Station Only
The AutoAnchor AA710 Windlass Control Kit provides control for full windlass control and chain counting with the option of thurster operation.
AutoAnchor AA710 Windlass Control Kit Features:
- Larger LCD with improved contrast
- 2 additional outputs in the base station allow for more installation options – A single kit can be used for 1 windlass plus a bow and stern thruster
- Antenna plug is standard on the base station
- Automatic sensor detection – no need to select sensor in the set up
- Manual control alarm and stop at docking distance – stops the windlass during retrieval when using manual and automatic operations
- Swap controls option in set up – this option means the 'Up' button can be used as 'Out' and the 'Down' button can be used as 'In'
- Drum windlass counting capability
- Improved troubleshooting – Simplified diagnostics and built in voltmeter with expanded technician diagnostics
- Time out connection between the base station and the console now adjustable up to 20 minutes
- Dual speed windlass capability
- Options for windlass related actions, using the left and right arrow buttons, no longer limited to anchorwash and anchorlight. Can now be user selected and could include a windlass stow, power cleats, deck wash, deck light
- Power enable option now available with off delay for hydraulic, AC, DC and PLC installations
- Controls bow and stern thrusters independently and together
- Preset the length of rode to deploy
- Auto stop and docking alarm when the anchor is close to docking
- Counts rope/chain or all-chain rode
- Logs windlass operating hours for maintenance
- Easy installation and set up
- Plug and play sensor installation
- Console unit is shockproof, waterproof and will float
- High level wireless transmission security includes unique ID and registration for every unit
- Safety lock reduces unwanted operation
- Ergonomic shape with lanyard connector
- Console holder and protective cover
- Displays signal strength and battery level
- Use with DC, AC and hydraulic windlasses
- Antenna available if wireless communication is impeded
- Operates in parallel with other control equipment eg toggle switches, foot switches and other electronic controllers
AutoAnchor AA710 Windlass Control Kit Specifications:
- AA710 Base Station - Power Supply: 12/24VDC
- AA710 Base Station - Current: 50mA
- AA710 Base Station - Output Current Draw: 12V DC: 3.5A min/10mA max, 24V DC: 3.5A min/20mA max
- IP Rating: IP67
- Operating Temperature Range: 23°F to 140°F (-5°C to 60°C)
- Wireless Transmission: 2.4GHz ISM Band, IEEE 802.15.4 Compliant, 64 Bit Unique ID
- Wireless Range: Typical Minimum 10m (30ft). Range depends on installation
