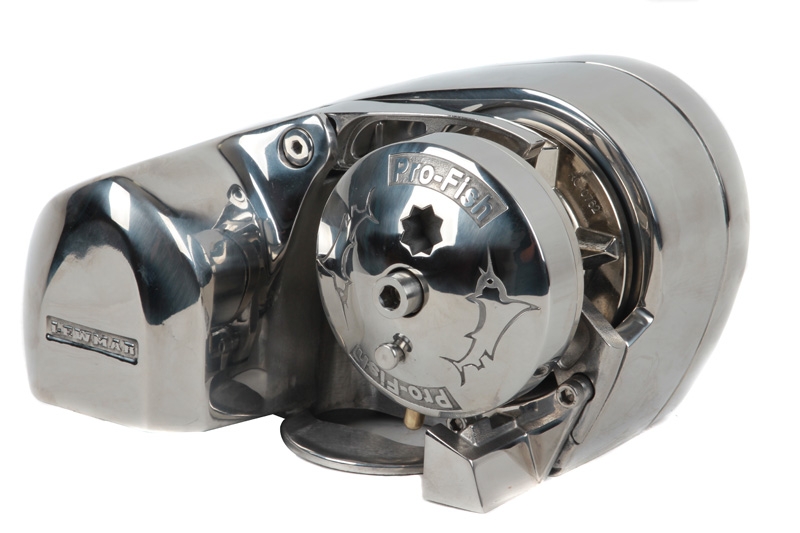

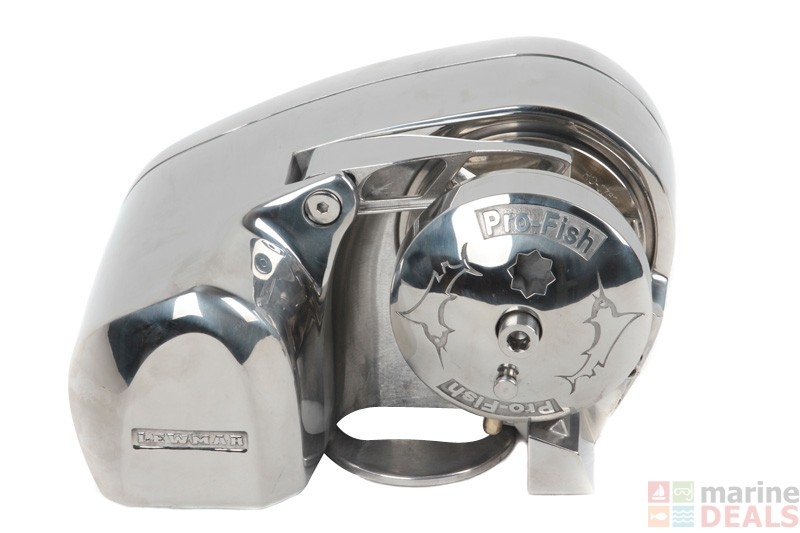

Lewmar Pro-Fish 1000 Freefall Anchor Windlass 8mm Kit

The ultimate windlass for you; with automatic free-fall

The Lewmar Pro-Fish 1000 Freefall Anchor Windlass is the ultimate windlass for fishermen. The Pro-Fish has an automatic freefall that allows you to pull right up over a wreck or ledge, and drop anchor with speed and precision. Now, there is no more need to run your motor or waste fuel while you hover your catch. Plus, you can retrieve your anchor just as easily, with the push of a button. On top of that, the Pro-Fish is DIY-ready and made of durable 100% 316 stainless steel.

Lewmar Pro-Fish 1000 Freefall Anchor Windlass Features:

• Automatic freefall

• Powerful motor providing fast line speed

• Manual emergency recovery equipped (all you need is a common 1/2 socket wrench)

• Strong 100% 316 stainless steel, including control arm and stripper

• Maximum pulling power: 454kg (1,000 lb)

• Convenient above-deck installation

• Includes switch, solenoid and circuit breaker


Lewmar Pro-Fish 1000 Freefall Anchor Windlass Specifications:

• Dimensions: 245 x 178 x 146 mm

• Max Chain: 8mm (5/16in)

• Motor Supply: 12v

• Motor Power: 700w

• Maximum Pull: 454kg (1000lb)

• Maximum Line Speed: 32 m/min (105 ft/min)

• Working Load Limit: 114kg (250lb)

• Normal Current Draw: 50 Amp

• Circuit Breaker: 70 Amp

• Weight: 9.5kg

• Gypsy Number: 504

• Chain: 8mm DIN 766, 5/16" BBB, 8mm ISO 4565

• Rope: 14-16mm 3-strand and 8-plait (5/8 only)


What’s in the box:

• Free fall conversion kits

• Windlass

• Base gasket seal

• Fast mounting studs

• Installation wrench

• Circuit breaker

• Dual-direction solenoid

• Rocker switch

Note: "Pro Set" rope is the most effective rope to use on windlass anchor winches.
