Maxwell 1500 VW Hydraulic Vertical Windlass with Capstan

(0)
#9087167

Maxwell 1500 VW Hydraulic Vertical Windlass with Capstan

(0)
#9087167
$5,629
Special Order Estimated dispatch date: Aug 13 - Sep 23

Delivery options

Deliver to:
Auckland 1026, NZ
Estimated: $14.99
2-hour Click & Collect:
(order before 3pm, in-stock products only)

Buy now, pay later & Finance Options

Find Local Store
Report incorrect product information

Frequently Bought Together

Price for 3 items: $6,023.00
The VW anchor winches are designed for traditional rope and chain combination. Manual transfer of the rode to the chainwheel is required.

Specifications:
Sense of rotation CW
Model Capstan
Maximum pull/lift (kg) 850
Static hold (kg) 1500
Chain short link (mm) 6 - 10
Line speed (normal working) (m) 18 m/min
Hydraulic pressure (bar) 138
Hydraulic flow (litres/minute) 20
Net weight, hydraulic (kg) 15

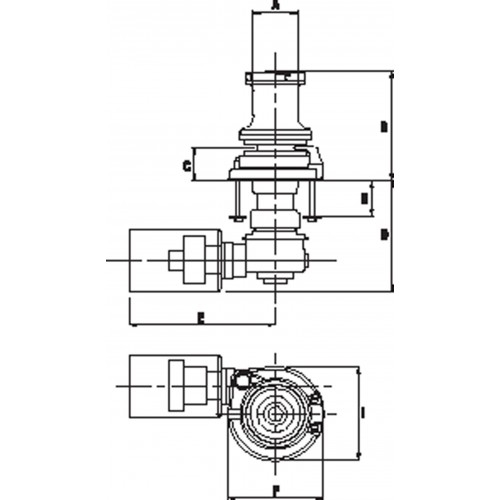

A (mm) 80
B (mm) 198
B1 (low profile) (mm) -
C (mm) 59
D (mm) 252
E (mm) 272
F (mm) 165
G (standard deck clearance) (mm) 100
G (extra deck clearance) (mm) 150
I (mm) 165

Product Data Sheet
