Quick T6315 Solenoid Unit 24V

#9039275
Warranty Badge - 12-Months
Ships Dec 13 - Dec 26
Why pay $429.00
ONLY $409.00
SAVE $20.00!

Seen a lower price? Ask us to beat it

Add Items to Cart
No payments or interest for 12 months*

💬 Report incorrect product information

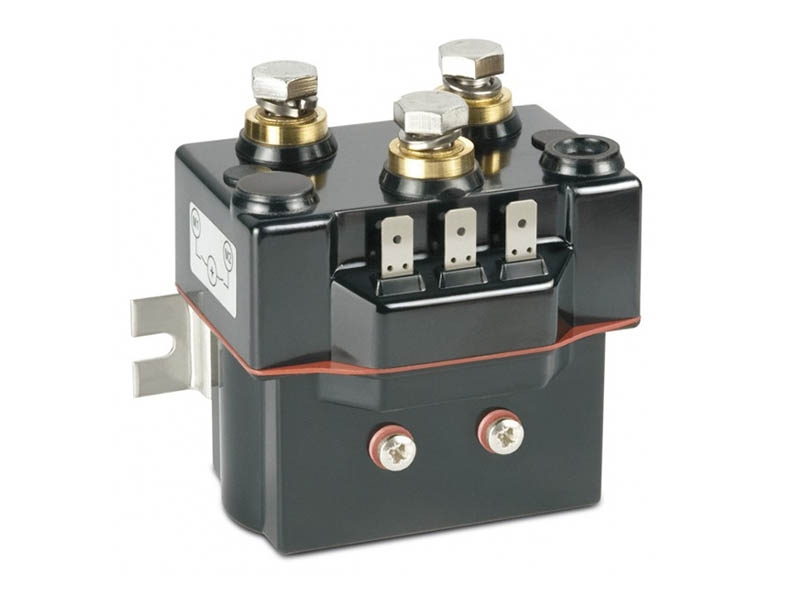

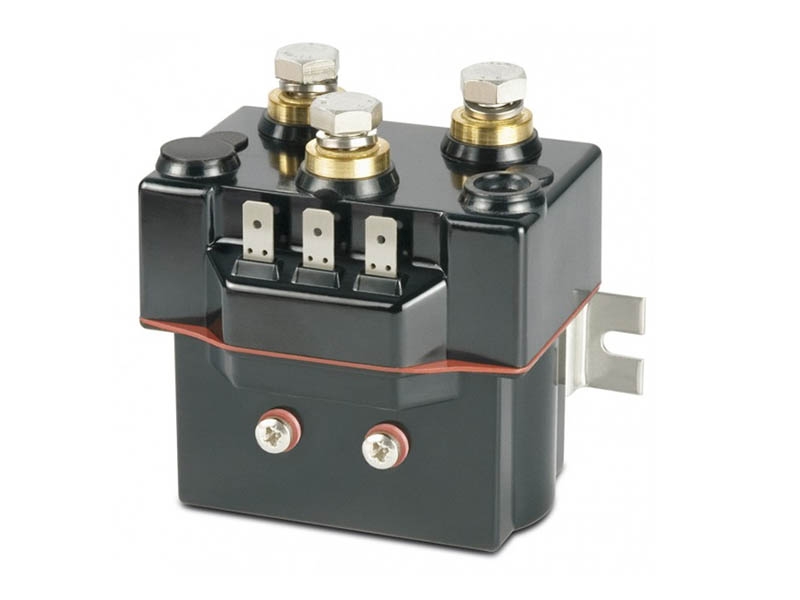

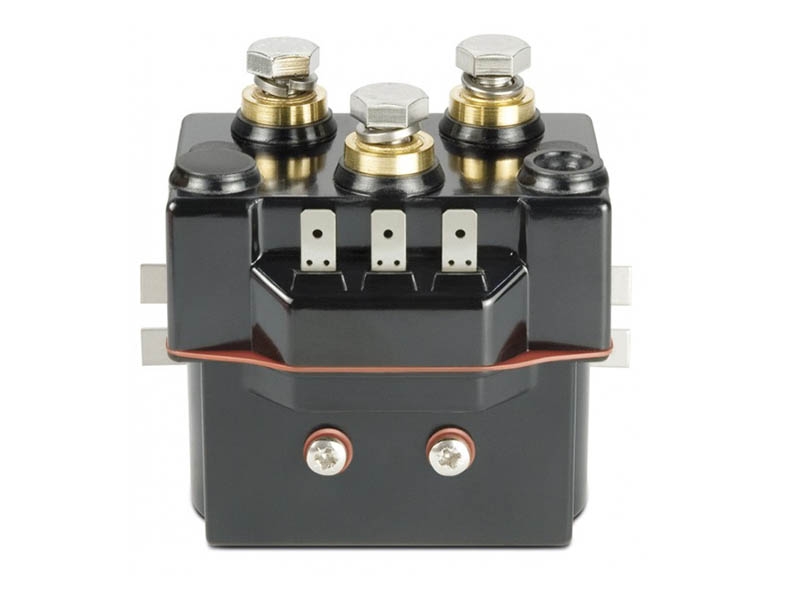

Quick T6315 Solenoid Unit 24V

Click on the image above to view full picture

More Views

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Lewmar Solenoid Control Unit for Windlass 12V

Lewmar Solenoid Control Unit for Windlass 12V
Why pay $341.75
ONLY $319.00
SAVE $22.75!
Details

Details

Easy installation

The Quick T6315 Solenoid Unit is a non-reversing contactor that is used to operate electric motors designed for windlasses and capstans. This allows you to turn the motor on and off. It's made with external connectors for easy installation.

Quick T6315 Solenoid Unit Features:
  • Non-reversing contactor
  • Fast, easy install
  • IP66 waterproof casing
  • Comes with product sheet

Quick T6315 Solenoid Unit Specifications:
  • Model: T6315-24
  • Unit Type: Contactor
  • Maximum power of the windlass/capstan motorl: 3500 W
  • Max contact voltagel: 48 Vdc
  • Interruption capacity (1)l: 800 A @ 48 Vdc
  • Working intermittent current (50% of work cycle) (Ie): 150 A
  • Coil rated voltagel: 24 Vdc
  • Recommended fusel: 1.6 A Fast
  • Degree of protectionl: IP 66
  • Weightl: 1.87 g

Note: Not designed for sternlegs.
