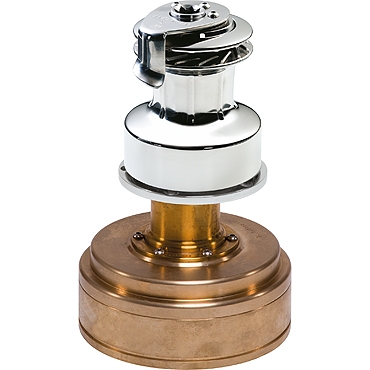

ANDERSEN 28ST Self Tailing Electric Winch Variable Speed Below Deck 24v

The ANDERSEN 28ST Self Tailing Electric Winch Variable Speed Below Deck 24v is a compact motor especially developed for use as a winch motor. This Below Deck version has smaller, built-in dimensions than a standard motor This motor is highly efficient, with an impressive line speed and first-rate maximum load. The unit is extremely easy to install and is of course compatible with the ANDERSEN Modular Power System™.

Compact
This motor comes in the size and shape of a winch but with integrated motor, gears and power control to make one COMPACT unit. That means no extra control boxes, all cables are connected directly to the unit. The motor is built on an entirely new commutator principle using no carbon brushes, resulting in the virtual elimination of wear and tear. This new approach to motors also provides other advantages; including 30-50% less power consumption compared to a conventional electric motor.

ANDERSEN 28ST Self Tailing Electric Winch Variable Speed Below Deck 24v Features:

• Compact in design integrating motor, gears and power controls into one unit

• Impressive line speed and first rate maximum load

• Easy to install and compatible with the ANDERSEN Modular Power System™.

• Version: Below deck

• Motor built without carbon brushes eliminates wear and tear.

• 30-50% less power consumption compared to conventional electric motors

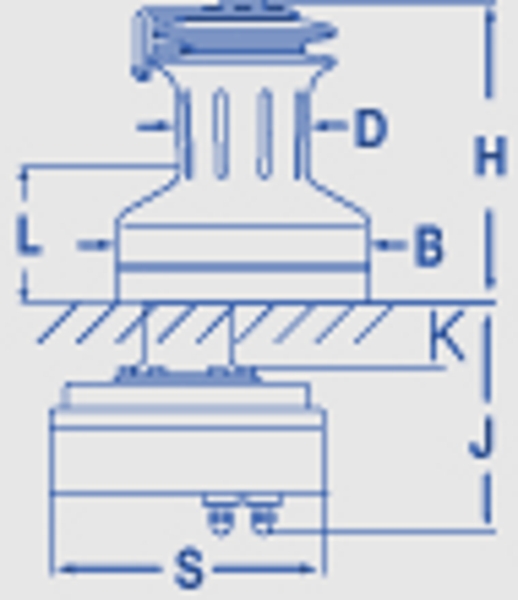

ANDERSEN 28ST Self Tailing Electric Winch Variable Speed Below Deck 24v Specifications:

• Drum diameter D: 70 mm

• Base diameter B: 125 mm

• Height H: 159 mm

• Line Entry L: 73 mm

• Line Size: 8-14 mm

• Weight: 17 kg

• Max Deck K: 54 mm

• Motor Depth J: 180 mm

• Motor diameter S: 195 mm

ANDERSEN Winches® Above and Below Deck Electric Compact Motors for 28ST/34ST/40ST/46ST/50ST/52ST/58ST/62ST/68ST/72ST Manual
