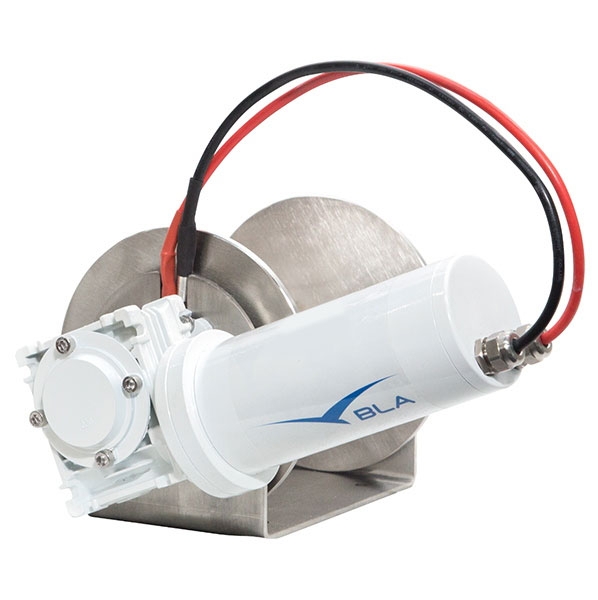

BLA Drum Winch 5500 Kit

The item you're looking at is currently unavailable or has limited stock, how about this one instead?

Quick Prince DP2 Vertical Windlass

Details

Details

The most compact drum winch on the market

Introducing the all-new BLA Drum Winch 5500 Kit, designed locally and made exclusively for BLA offering a high-quality drum winch at a price every boat owner can afford. The 5500 series has been designed to fit into the smallest of anchor wells. The same high quality build; it comes with all the design features and benefits of the larger anchor winch range.

All BLA Drum Winches feature a sealed motor and gearbox with a 316 grade stainless steel drum and body to protect from water ingress and corrosion and
comes complete with double braid rope, chain and switchgear for hassle free anchoring.

BLA Drum Winch 5500 Kit Features:

• Motor is fully sealed from corrosion/water. No exposed terminals

• Custom rope kits available to suit any anchoring depth

• Innovation award winner

• 3 Year warranty - Australian Designed, made in China

• Motor & gearbox can be adjusted in 8 positions to drum


BLA Drum Winch 5500 Kit Specifications:

• Winch Model: 5500

• Drum Size: 200mm

• Max Vessel Size: 5.5m

• Rope Length: 64m x 6mm

• Chain Length: 6m

• Total length: 70m

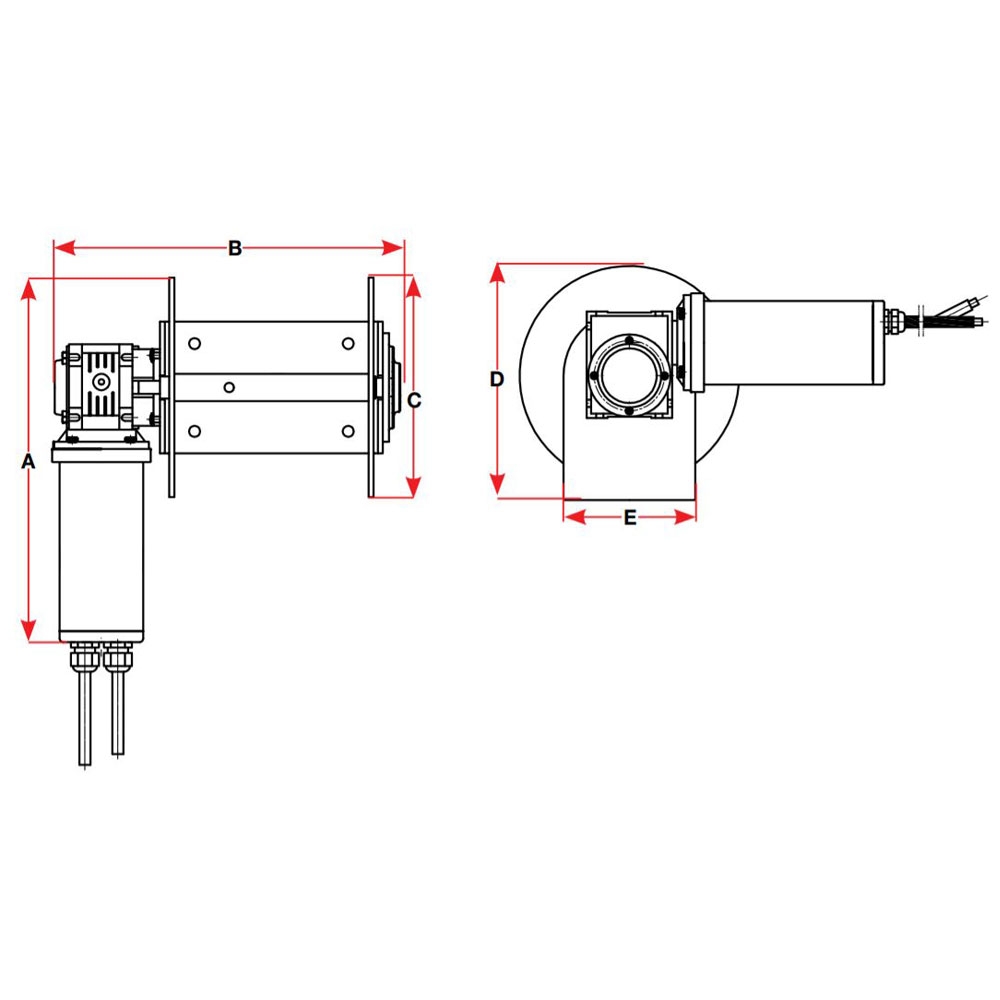

• Dimensions (A): 332mm

• Dimensions (B): 315mm

• Dimensions (C): 200mm

• Dimensions (D): 210mm

• Dimensions (E): 120mm

• Recommended for boats 3-5.5m long


Kit Includes:

• Motor and gearbox

• 316 Grade stainless steel drum

• Up/down solenoid switch

• Circuit breaker

• Double braid rope and chain kit

• Backing plate and bolts

• Guide roller


Note: Measurement does NOT include waterproof glands or wire 153110 only has 8 mounting positions. Please note that this unit does not have a free-fall mode. This winch only has 50m of line so it will all be out in less than 1.5 minutes. This gives the operator time to back up properly while the line is laid.
