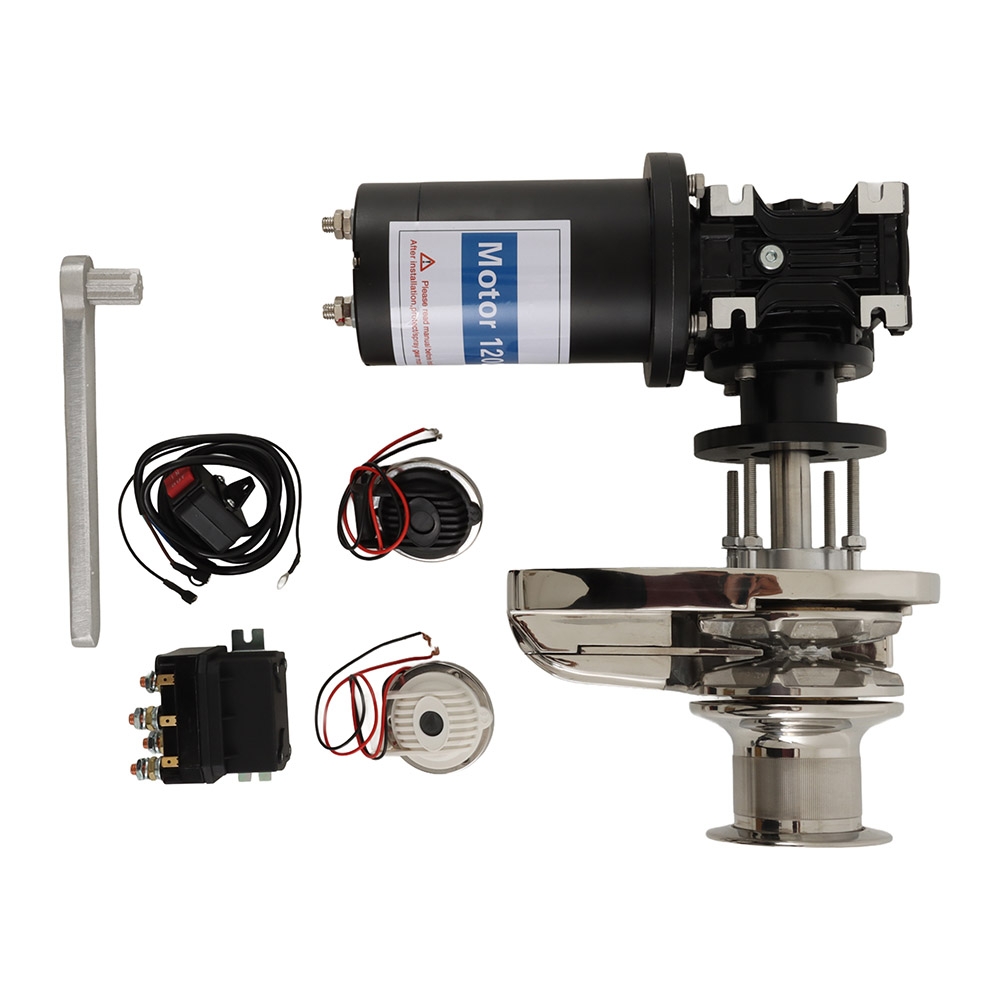

Maxwell 1500 VW Vertical Windlass with Capstan 12V 1200W

#9087165
Warranty Badge - 3-Years
Ships Dec 28 - Feb 8
ONLY $4,709.00

Seen a lower price? Ask us to beat it

Add Items to Cart
No payments or interest for 12 months*

Click on the image above to view full picture

More Views

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Maxwell Anchormax Vertical Capstan 12V 500W

Maxwell Anchormax Vertical Capstan 12V 500W

Why pay $1,305.02
ONLY $1,049.00
SAVE $256.02!
Details

Details

The VW anchor winches are designed for traditional rope and chain combination. Manual transfer of the rode to the chainwheel is required.

Specifications:
Voltage (V) 12 V
Sense of rotation CW
Motor (W) 1200
Model Capstan
Maximum pull/lift (kg) 850
Static hold (kg) 1500
Chain short link (mm) 6-10
Line speed (normal working) (m) 18 m/min
Net weight, electric (kg) 22
A (mm) 80
B (mm) 198
B1 (low profile) (mm) -
C (mm) 59
D (mm) 252
E (mm) 272
F (mm) 165
G (standard deck clearance) (mm) 100
G (extra deck clearance) (mm) 150
I (mm) 165

Product Data Sheet
