Up (Windlass / Electric Winches) ▲

Maxwell 1500 VWC Vertical Windlass with Capstan 24V 1200W

#9087178
Warranty Badge - 3-Years
Ships Dec 28 - Feb 8
ONLY $5,289.00

Seen a lower price? Ask us to beat it

Add Items to Cart
No payments or interest for 12 months*

💬 Report incorrect product information

Maxwell 1500 VWC Vertical Windlass with Capstan 24V 1200W

Click on the image above to view full picture

More Views

Frequently Bought Together

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Maxwell Anchormax Vertical Capstan 12V 500W

Maxwell Anchormax Vertical Capstan 12V 500W
Why pay $1,305.02
ONLY $1,049.00
SAVE $256.02!
Details

Details

Designed for vertical handling, it has an independent capstan for retrieval of a secondary rope/chain rode or to assist with docking procedures.

Specifications:
Voltage (V) 24 V
Sense of rotation CW
Motor (W) 1200
Model Capstan
Maximum pull/lift (kg) 850
Static hold (kg) 3300
Chain short link (mm) 1/4- 3/8
Line speed (normal working) (m) 60 ft/min
Net weight, electric (kg) 24

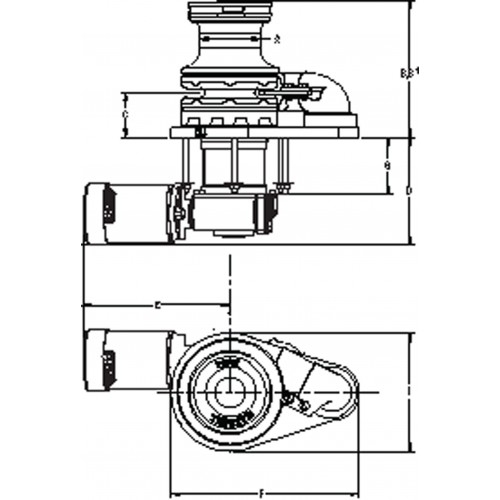

A (mm) 80
B (mm) 195
B1 (low profile) (mm) -
C (mm) 56
D (mm) 252
E (mm) 272
F (mm) 224
G (standard deck clearance) (mm) 100
G (extra deck clearance) (mm) 150
I (mm) 165

Product Data Sheet
