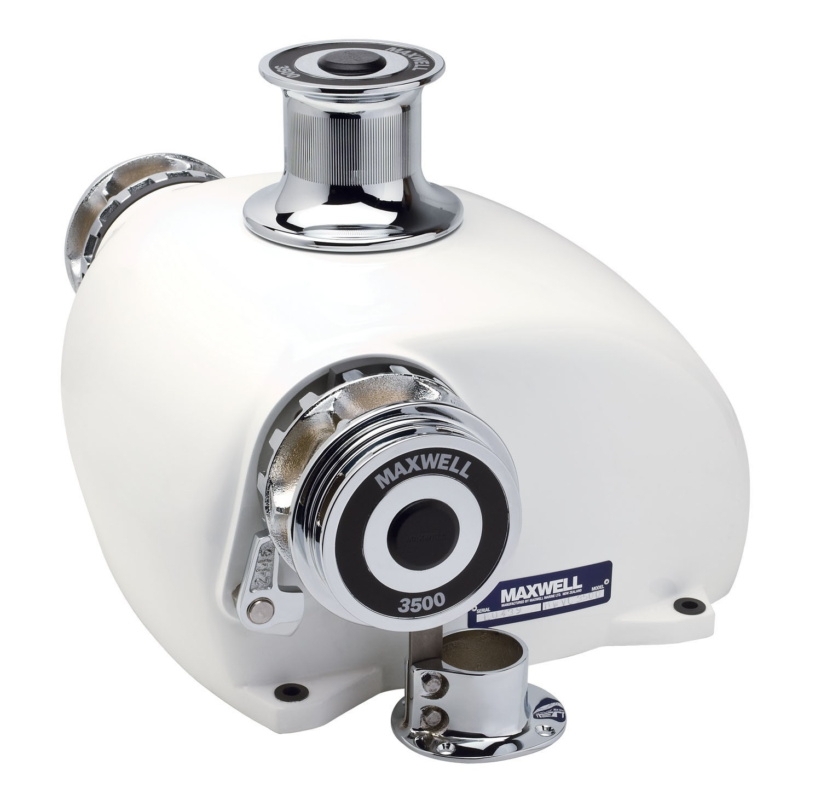

Maxwell 3500 HWVC Horizontal Windlass 24V 1200w SCW/SD VC

The item you're looking at is currently unavailable or has limited stock, how about this one instead?

Maxwell HYDRAULIC Horizontal Windlass HRC10-10 - Standard Chain Wheel - Clearance

Why pay $3,951.08

ONLY $2,499.00

SAVE $1,452.08!

Details

Details

The HWC Series is designed for automatic horizontal handling of chain-only anchor rodes while offering an independent capstan for the retrieval of a secondary rope and chain rode or to assist with docking procedures. Features and benefits

• Fully automatic single or dual direction chainwheel operation, for use with chain only rodes
• Functional rope hauling from fore and aft using independent fluted stainless steel snag-free warping drum with clutch disengagement of chainwheel for positive control of all ropes
• Optional dual anchor handling with smooth independent control of each chainwheel via cone clutches
• Chain pipe assembly supplied
• Cone-type clutch/brake mechanism permits manual free fall'anchoring. Cone clutches, unlike dog clutches, provide smooth progressive engagement ensuring safe and precise operator control
• Chainwheel locking pawl to assist when using warping drum independently
• Simple deck mounted installation with no under deck parts
• Simplified maintenance with ability to strip the running gear (chainwheel and drum) from the windlass without disturbing the windlass mounting
• Heavy duty, dual direction motor, designed for marine winches
• Chainwheel and warping drum of high-quality chrome finish
• over marine-grade bronze
• Marine-grade alloy casing pretreated, powder coated and finished with a two component white polyurethane paint
• Specifications:

Voltage (V)	24 V
Sense of rotation	-
Motor (W)	1200
Maximum pull/lift (kg)	1590
Static hold (kg)	2200
Chain short link (mm)	10-13
Line speed (normal working) (m)	10
Net weight, electric (kg)	94,5
A (mm)	515
B (mm)	446
C (mm)	710
I (mm)	130
D (hole centres) (mm)	417
F (hole centres) (mm)	464
G (approximate hole centres) (mm)	348
H (working height of drum for rope warping) (mm)	53
J (mm)	287
