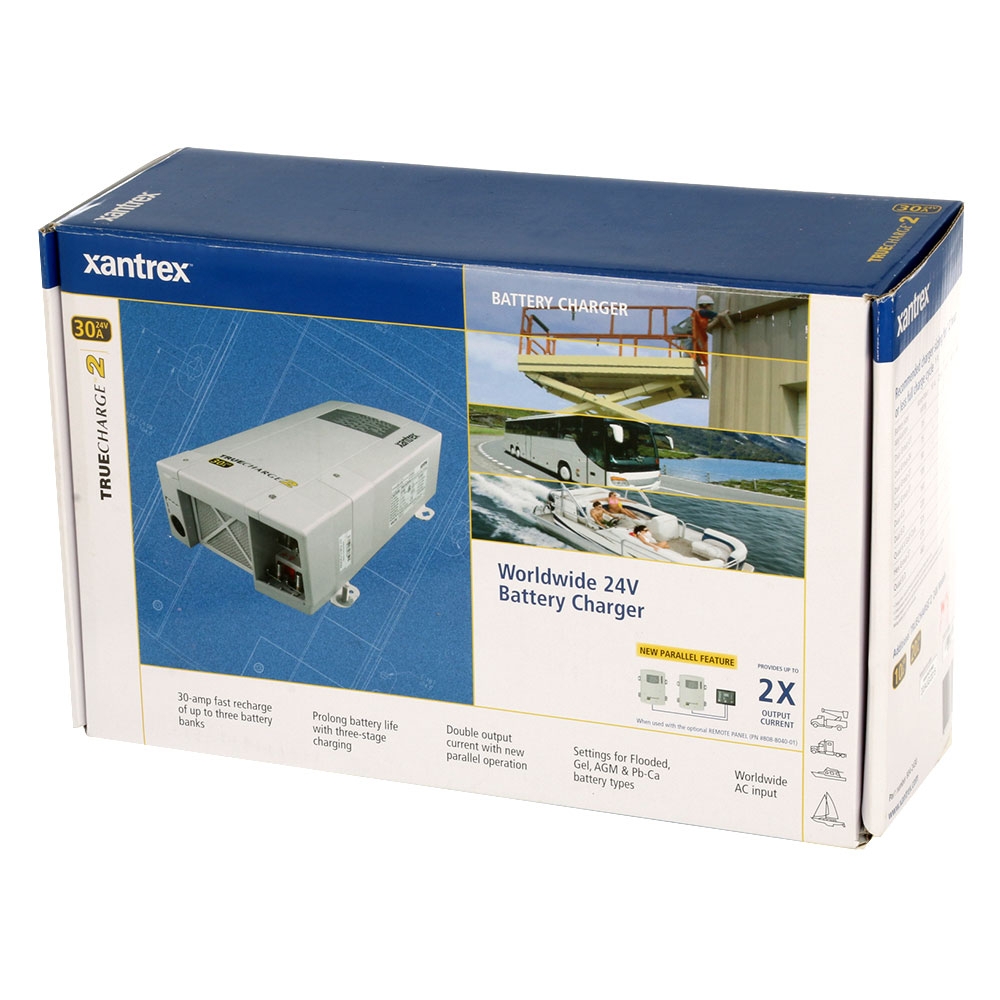

Xantrex True Charge 2 Battery Charger 30amp 24v
Xantrex True Charge 2 Battery Charger 30amp 24v
Deliver to:
Auckland 0626,
NZ
Estimated:
$5.99
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
Unmatched reliability and performance

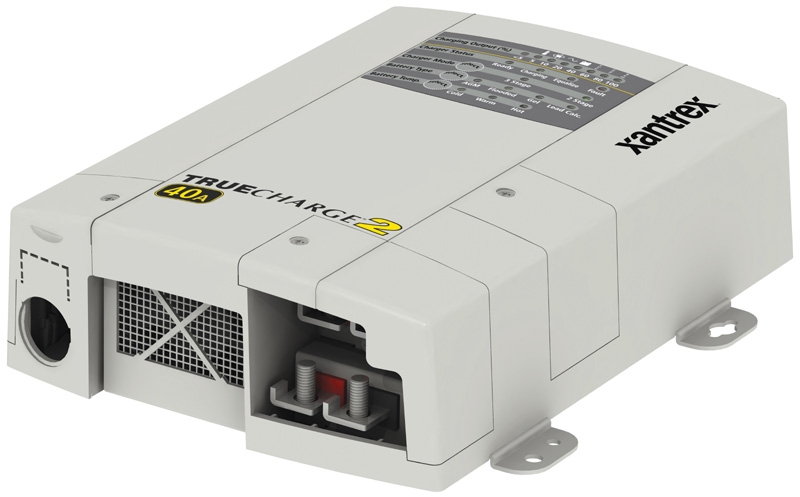

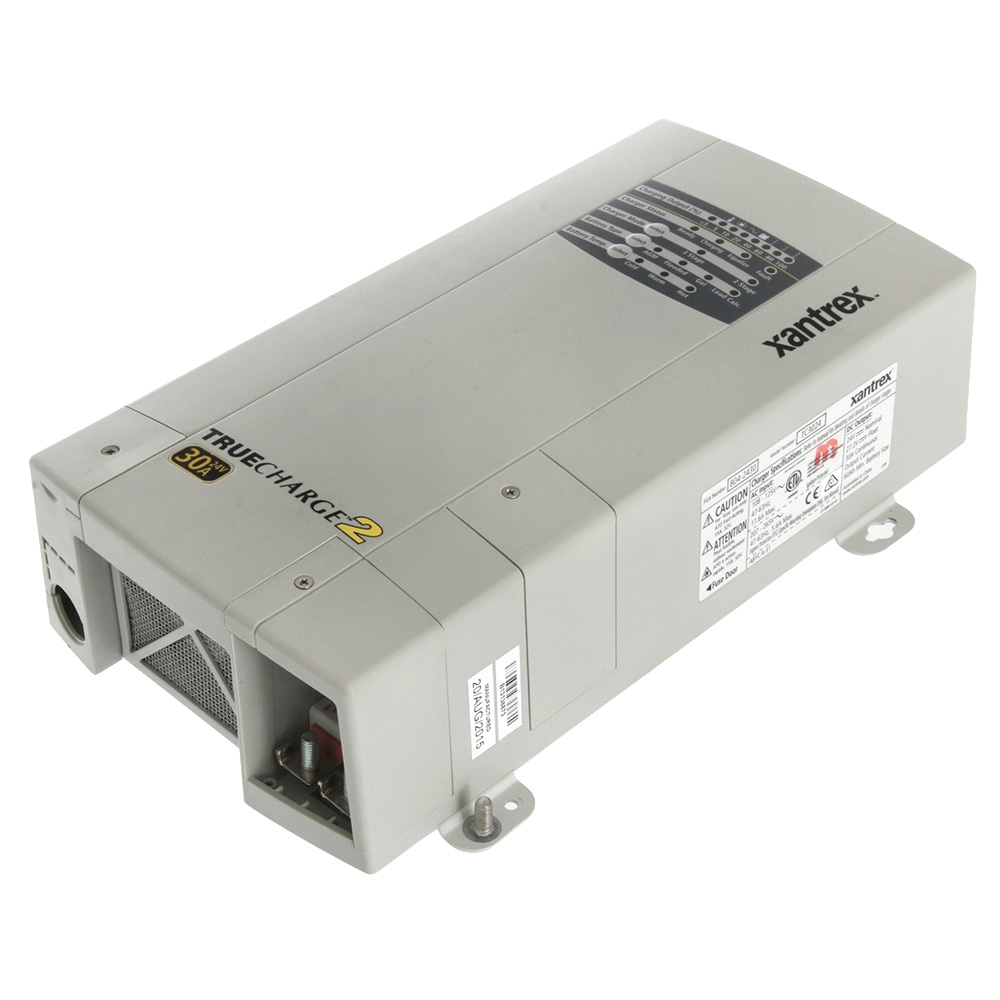

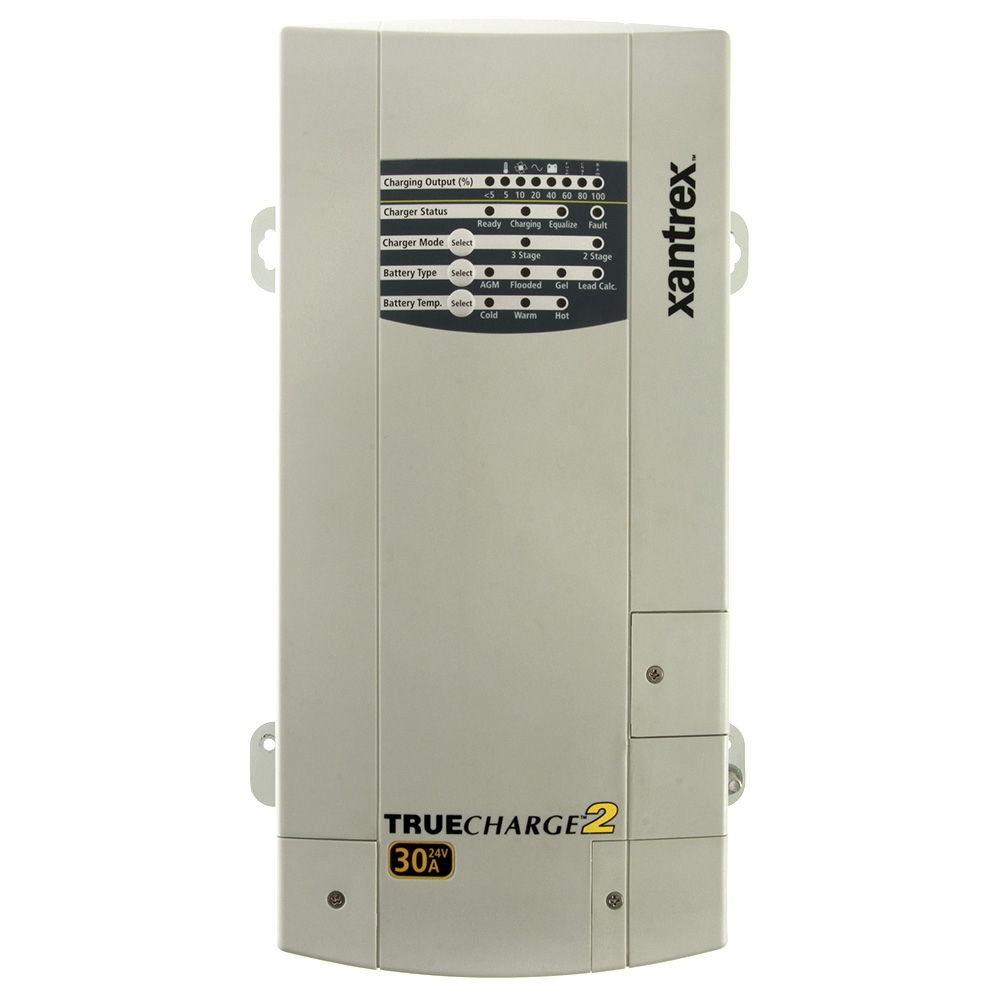

The Xantrex True Charge 2 Battery Charger was carefully designed to provide high quality performance. The unique small footprint and ultra-compact design of the Xantrex True Charge 2 gives it an edge among other battery chargers. It features low electrical interference and an efficient power factor corrected multistage charging. Also, its unique drip-proof design allows it to be mounted virtually anywhere! The Xantrex True Charge 2 Battery Charger is designed primarily for marine and commercial applications worldwide and has passed and met the global safety and regulatory standards.
Three-Stage Charging Multistage charging ensures batteries receive optimum charging, but with minimal wear and tear, regulating the voltage and current delivered to the batteries in three automatic stages:
- Bulk: Replaces 70-80% of the battery’s state-of-charge at the
fastest possible rate
- Absorption: Replenishes the remaining 20-30% of charge,
bringing the battery to a full charge at a slow, safe rate
- Float: Voltage is reduced and held constant in order to prevent
damage and maintain batteries at a full charge - the "Float"
function acts like a trickle charge so it keeps the battery at full
charge
Xantrex True Charge 2 Battery Charger Features:
- 24V model in 30A
- Microprocessor-controlled, multistage charging
algorithms

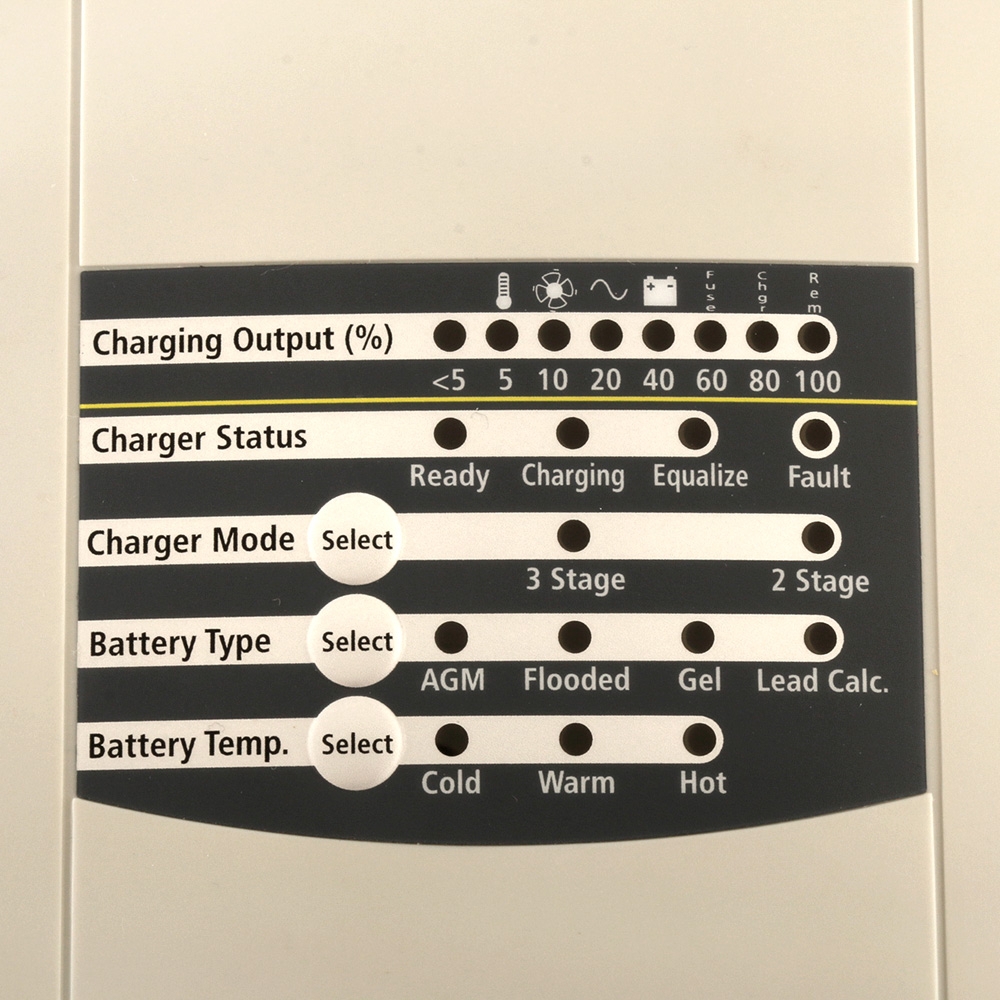

- Settings for two and three-stage charging
- Settings for flooded, gel, AGM or lead-calcium
batteries
- Auto-ranging universal input voltage (90-265 Vac, 47-63 Hz) is
also compatible with a generator or other low-quality power
sources
- Temperature-compensated charging
- Power factor corrected for efficient charging
- Battery-equalisation feature
- Ability to charge ‘dead’ batteries
- Battery temperature sensor available (Part
#808-0232-01)
- Optional remote panel (#808-8040-01) required for parallel
stacking
- Reverse battery polarity protection
- Drip-proof design
- Over and under-temperature protection
- DC over-voltage protection
- Battery overcharging protection

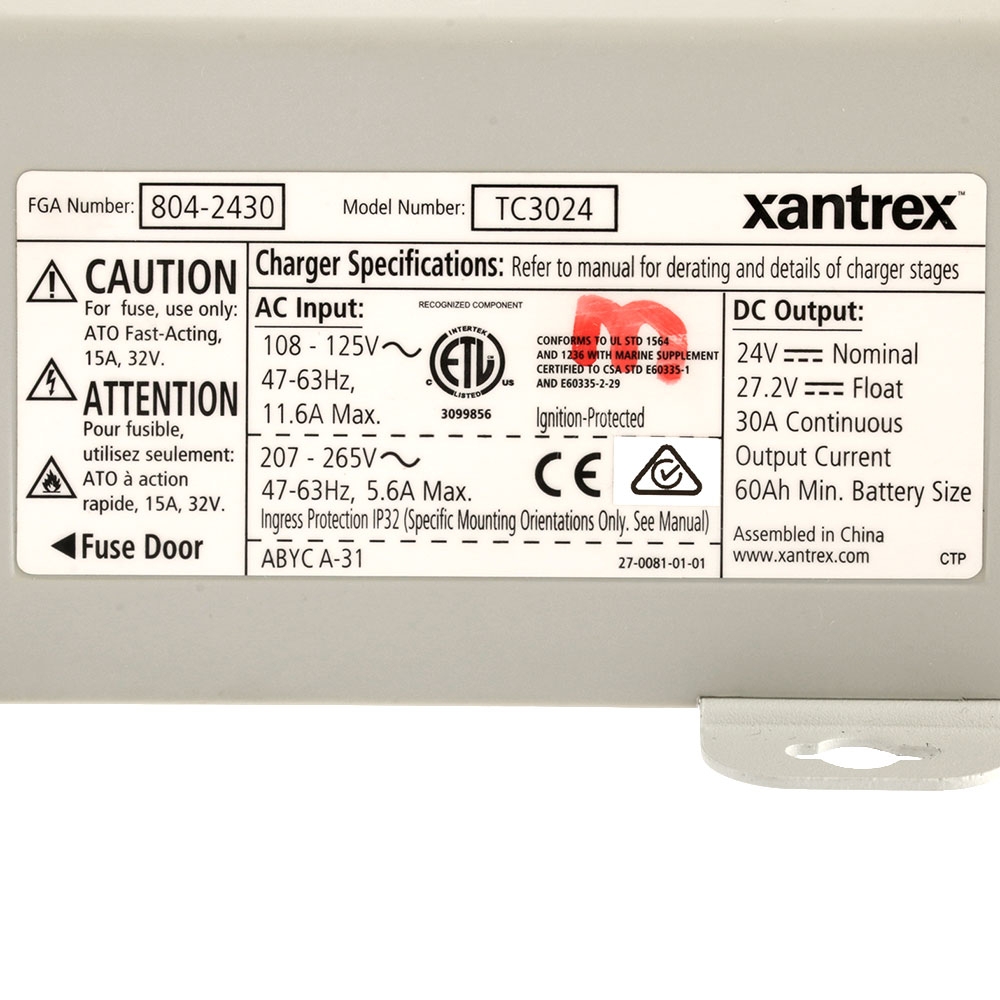

Xantrex True Charge 2 Battery Charger Specifications:
- Operating temperature: 0 to 60°C
- Storage temperature: -40 to 80°C

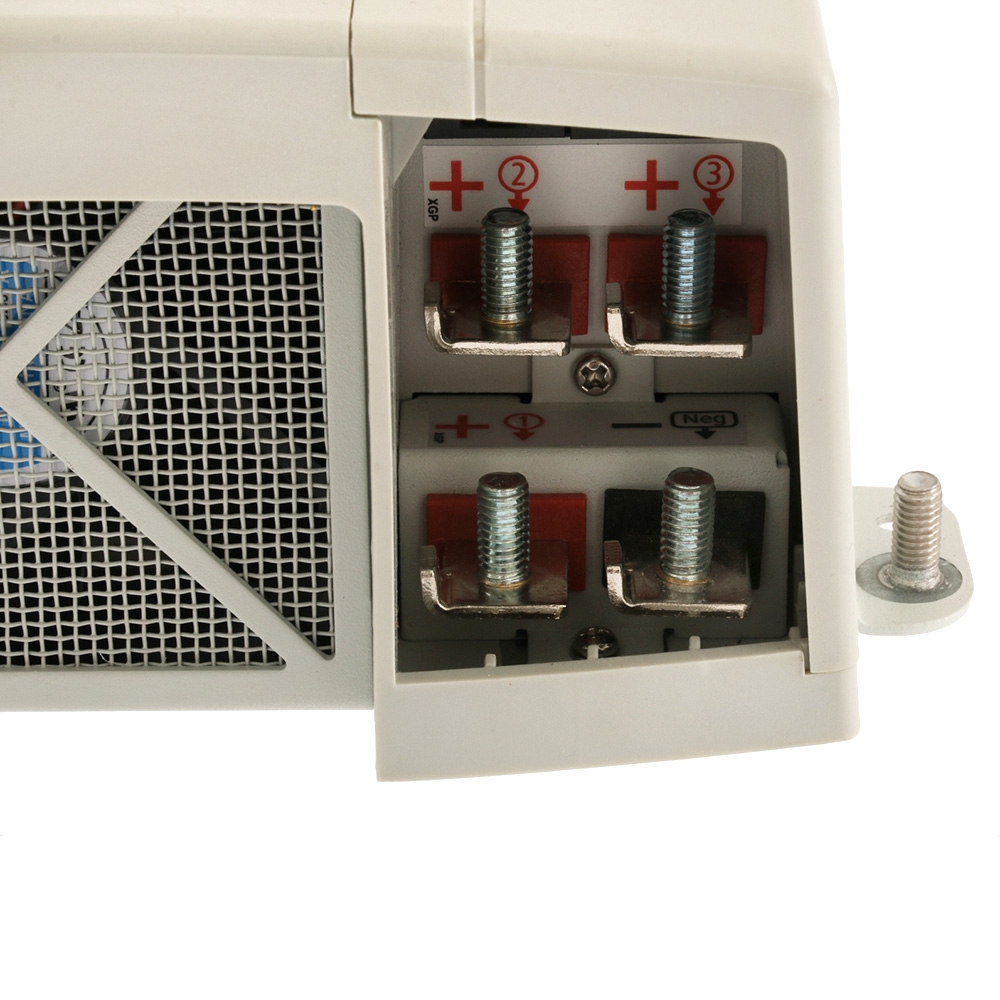

- Battery connection: Three positive terminals, One negative
terminal
- Dimensions (H x W x L): 2.8 x 6.7 x 9.8” (70 x 170 x
250mm)
- Weight: 4.8 lb (2.2 kg)
- Output current (nominal): 20 A
- Output voltage (Charge): 14.2 - 15.5 Vdc
- Output voltage (Float): 13.4 - 13.8 Vdc
- Output voltage (Equalize): 16 Vdc
- DC output connections: Three
- AC input voltage*: 90-265 Vac 47-63 Hz, 120 Vac, 230 Vac, 240
Vac nominal
- Temperature compensation: Three settings
- Charger efficiency: > 80%
- Battery type: Gel, Flooded, AGM, Pb-Ca
- Minimum recommended battery bank size: 40 Ah / 80 Ah / 120
Ah
Xantrex True Charge 2 Battery Charger User Manual
