Zipwake Box 1000 Series E Dynamic Trim Control System Kit

Zipwake Box 1000 Series E ZW2012013 Dynamic Trim Control System Kit

Zipwake is an economical Dynamic Trim control System. Zipwake Series E KB1000-E phases out the trim issues of planing and semi-planing boats ranging from 50-100 feet. Zipwake heightens fuel economy, comfort, performance and safety as you accelerate, turn and run in a seaway. The kit includes everything you'll need to install your new Zipwake system. You can further your speed and control with up to two additional pairs of interceptors.

Features:

• Fully automatic and active trim control system.
• Built-in GPS, 3D-Gyro, and 3D-Accelerometer in each control panel.
• Ideal for boats ranging from 50-100 feet. See Series S for boats 20-100 Feet.
• 5-10 times faster than conventional trim tab systems.
• Minimizes wave resistance and reduces fuel consumption by 10-12%

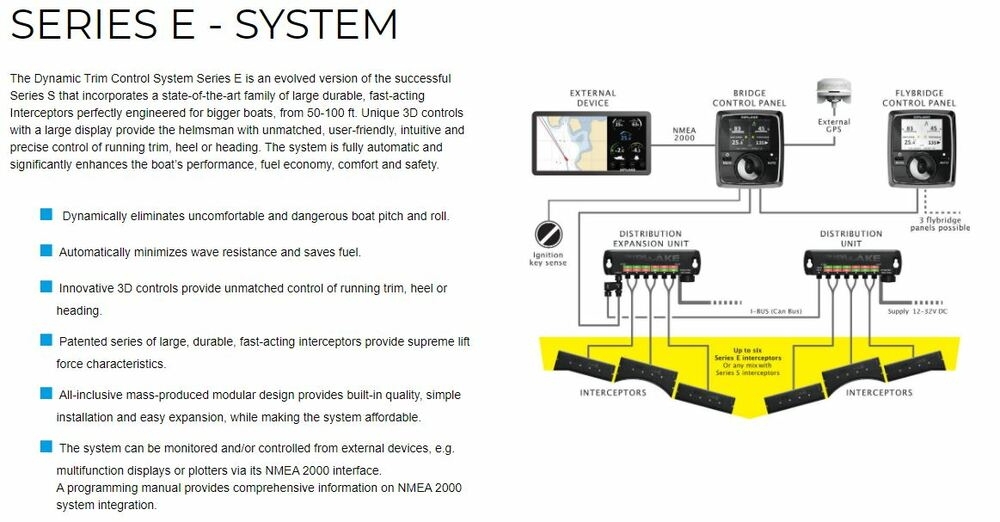

• Allows system integration for external devices through the NMEA 2000 network.

Includes:

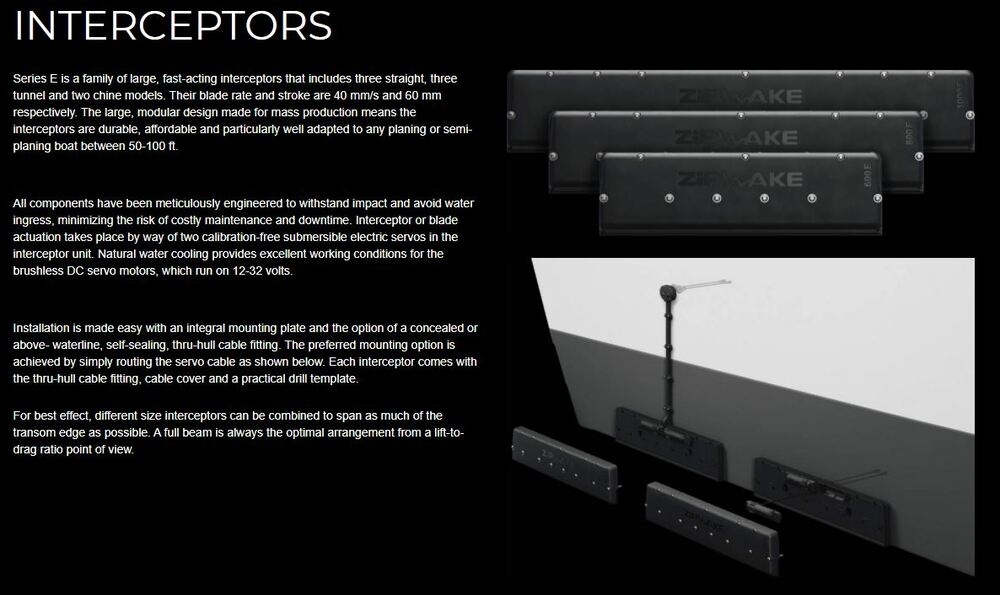

• (2) Interceptors. Width: 1000mm
• (1) 3M Cable and Cable Covers
• (1) Distribution Unit with 6m power cable
• (1) Control Panel with 15m standard cable
• (1) Extension cable

Specifications:

• Certified for CE and FCC
• Max Boat Speed is 60 knots
• Blade stroke is 12.4' or 60mm
• Blade Rate is 1.6 in/s or 40mm/s
• The Thru Hull Cable Fitting can be Concealed or Above the Waterline
• Servo Actuator is SU-S
• The Cable Material is PUR
• The Cable Length is 10 feet or 3 meters, extendable up to 20 feet or 6 meters
• The Connector is M12 5-pin Circular, the Diameter is 0.57' or 14.5mm
• The Voltage is 12-32VDC
• Power Consumption max is 25W
• Ingress Protection is IP68, 16' or 5 meters
• The Operating Temperature ranges from 32F to 104F or 0C to 40C
• The Storage Temperature ranges from -40F to 194F or -40C to 90C
